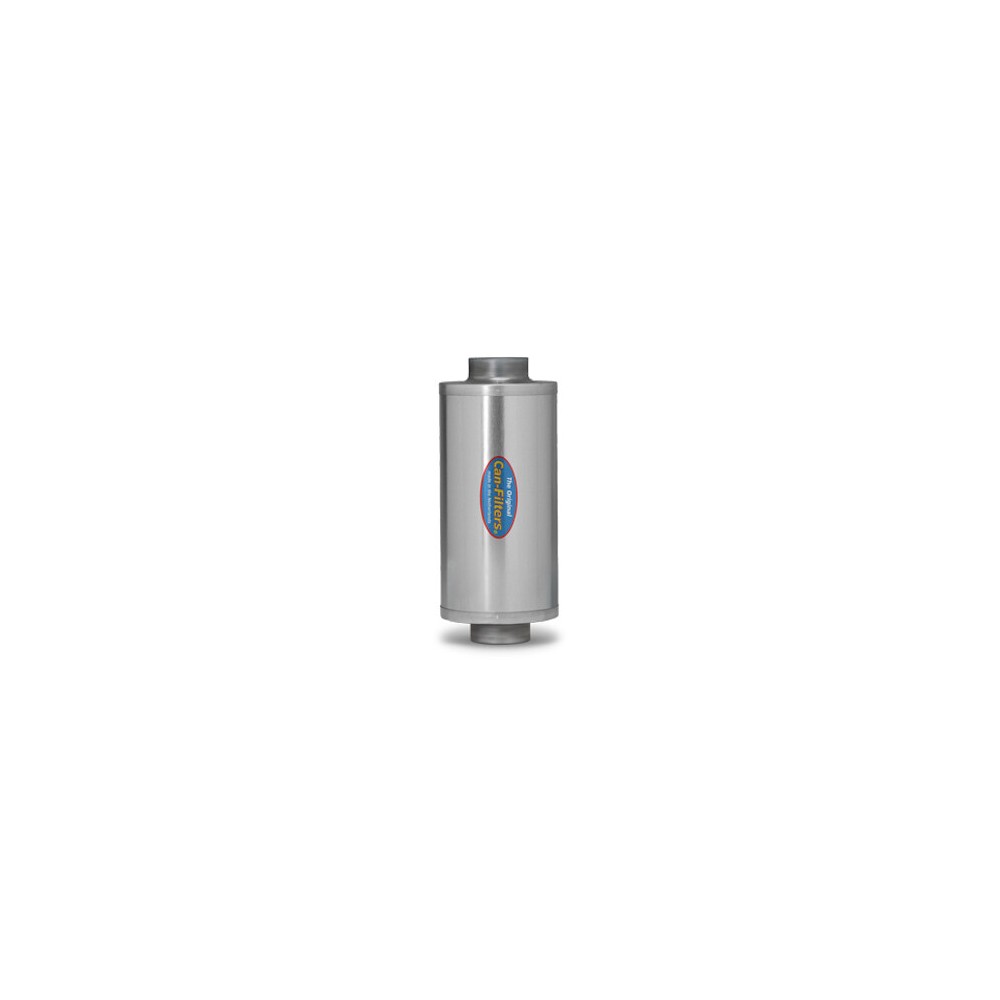

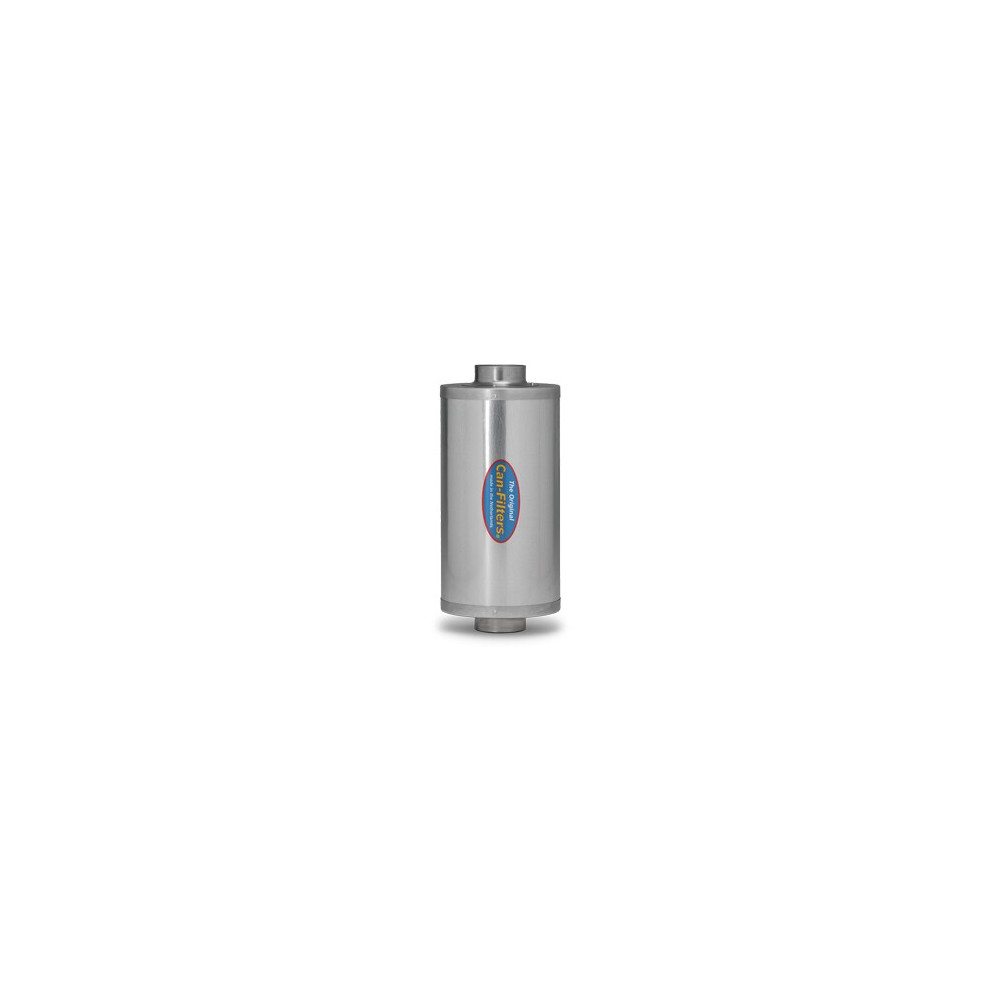

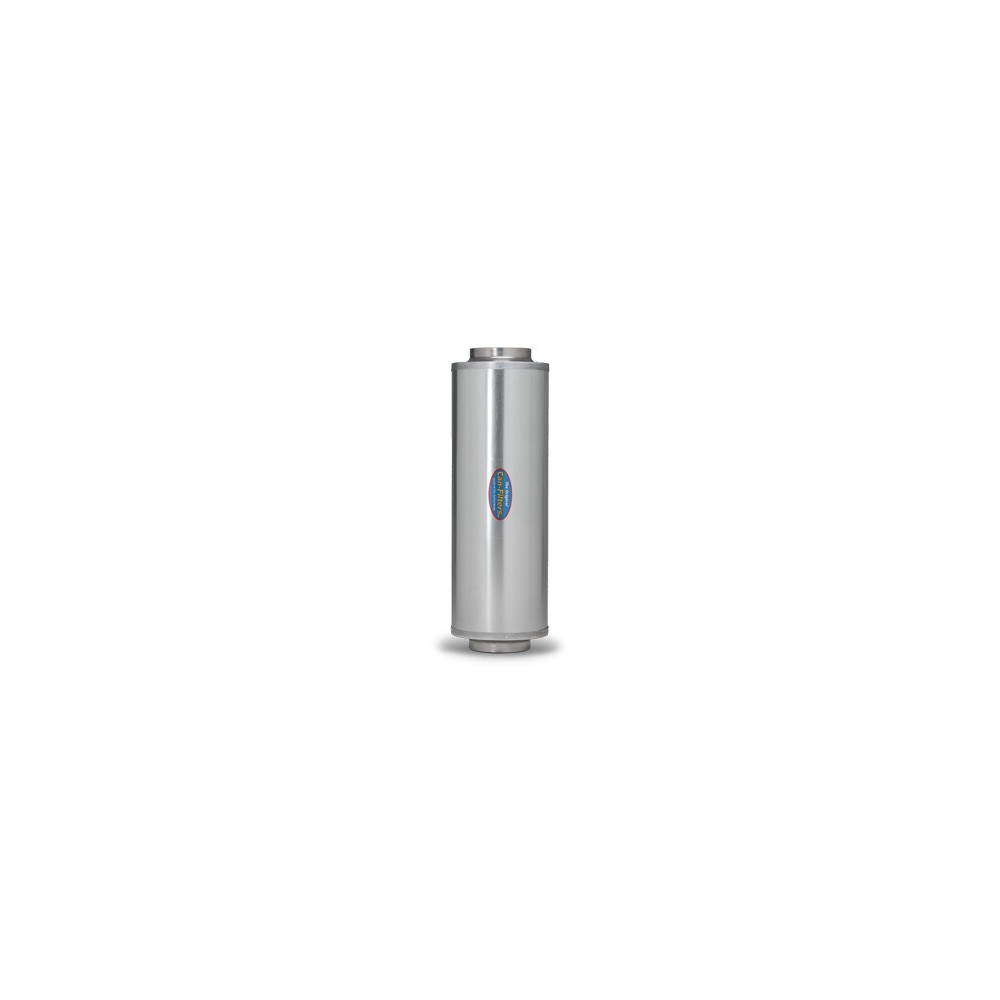

Can Inline activated carbon filters

🌬️ Can-Inline filter: the new generation of activated carbon filters

Not every growbox has space for a traditional charcoal filter. In such cases, the Can-Inline filter is the ideal solution.

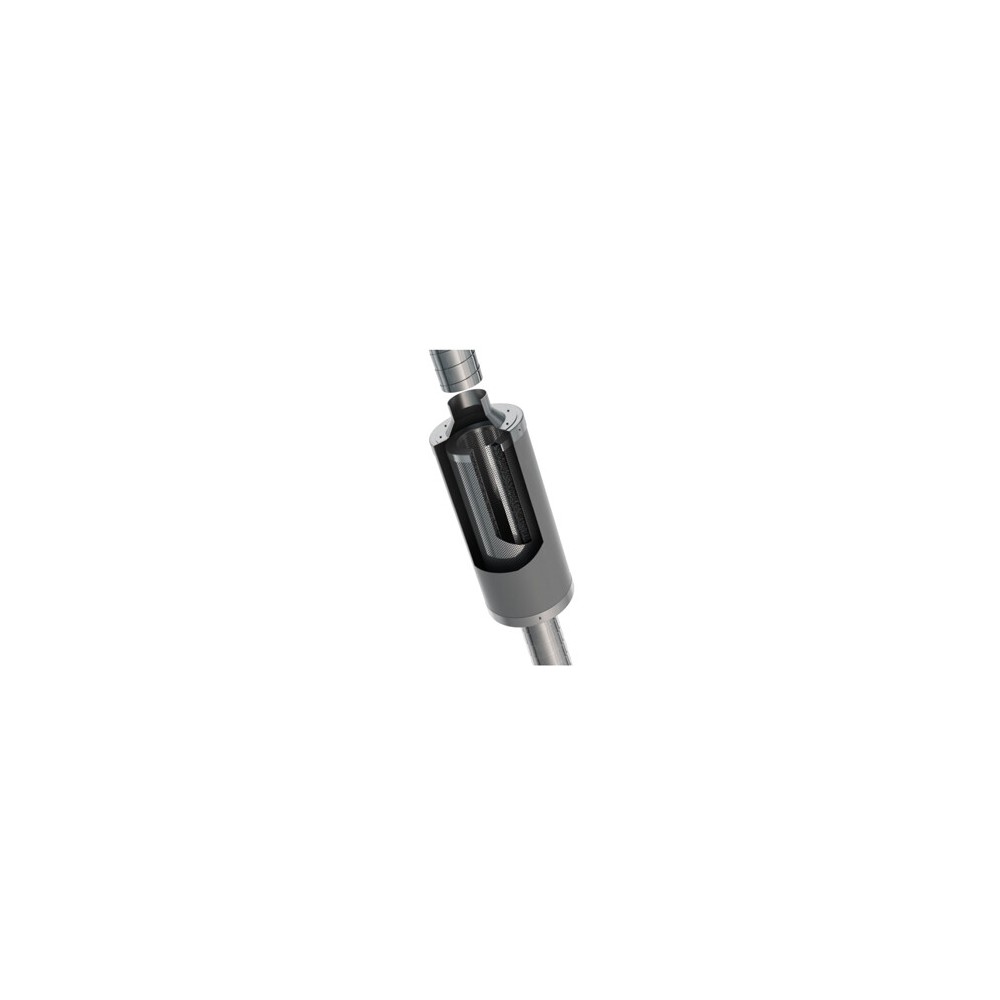

Can-Filters Inline filters belong to the latest generation of activated carbon filtration systems. Unlike conventional filters, they can be integrated directly into a ventilation system, either inside or outside the growbox. A real asset when space is limited.

✅ The advantages of the Can-Inline filter :

• Air inlet and outlet use: 100% efficient filtration in both directions.

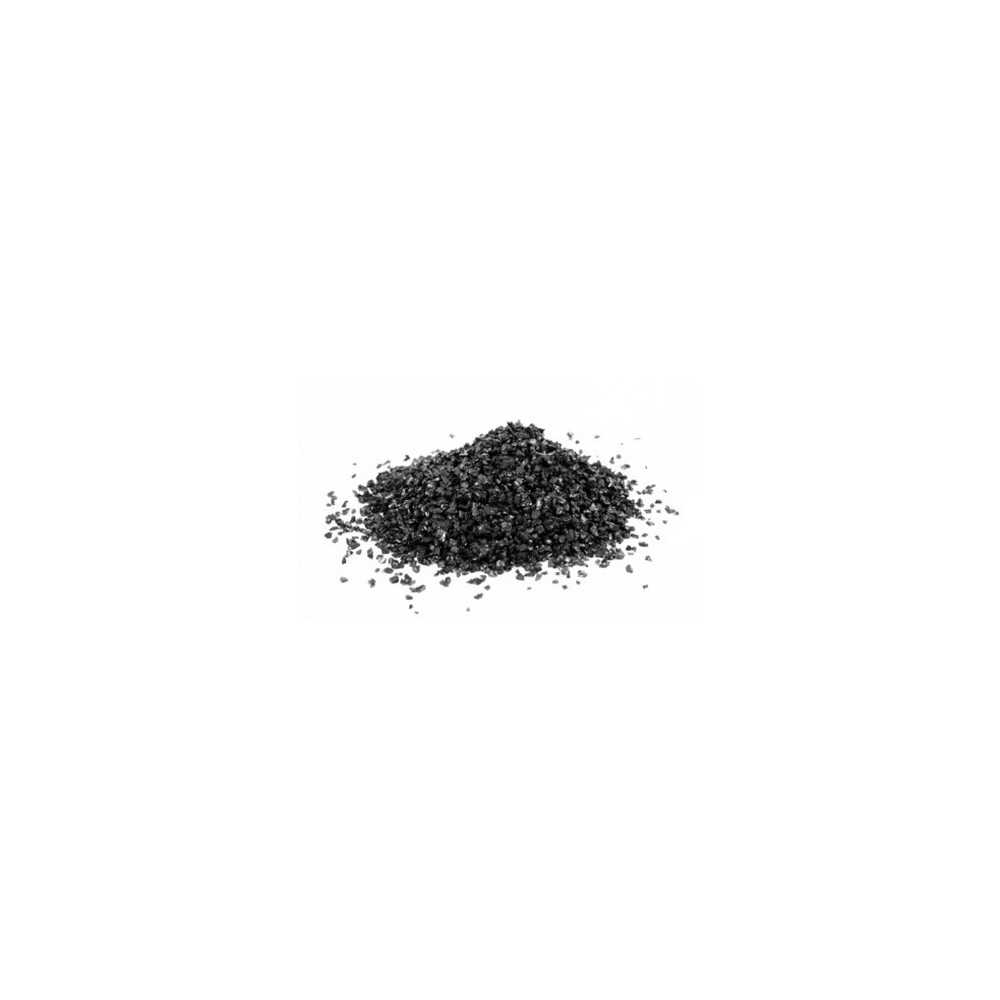

• Optimized filtration: Thanks to its high-performance Lite activated carbon, unwanted odors and particles are reliably eliminated.

• Robust metal housing: Designed for optimum air guidance and maximum durability.

• Flexible installation: Can be installed upstream or downstream of the ventilation circuit, inside or outside the grow room.

• Double filtration possible: Can be combined with a second filter for enhanced protection.

• Withstands up to 70% humidity and a maximum operating temperature of 80°C.

• Estimated service life: Up to 18 months, depending on environment and use.

📊 Technical details of the various Can-Inline models:

🔹 Can-Inline 425

• Model: Inline 425

• Material: steel

• Length: 87 cm

• Total weight: 8.5 kg

• Weight of coal: 1.6 kg

• Diameter: 30 cm

• Coal layer thickness: 2.5 cm

• Coal type: Lite

• Technical capacity: 467 m³/h

• Practical capacity: 425 m³/h

• Flanges: 125 mm

🔹 Can-Inline 600

• Model: Inline 600

• Material: steel

• Length: 60.5 cm

• Total weight: 10 kg

• Coal weight: 2.2 kg

• Diameter: 31.5 cm

• Coal layer thickness: 5 cm

• Coal type: Lite

• Technical capacity: 660 m³/h

• Practical capacity: 600 m³/h

• Flanges: 160 mm

🔹 Can-Inline 1000

• Model: Inline 1000

• Material: steel

• Length: 77.5 cm

• Total weight: 17 kg

• Weight of coal: 5.1 kg

• Diameter: 36.5 cm

• Coal layer thickness: 5 cm

• Coal type: Lite

• Technical capacity: 1100 m³/h

• Practical capacity: 1000 m³/h

• Flanges: 200 mm

🔹 Can-Inline 1500

• Model: Inline 1500

• Material: steel

• Length: 102.5 cm

• Total weight: 24 kg

• Weight of coal: 7.6 kg

• Diameter: 36.5 cm

• Coal layer thickness: 5 cm

• Coal type: Lite

• Technical capacity: 1650 m³/h

• Practical capacity: 1500 m³/h

• Flanges: 250 mm

🔹 Can-Inline 2500

• Model: Inline 2500

• Material: steel

• Length: 126.5 cm

• Total weight: 34.5 kg

• Weight of coal: 12.2 kg

• Diameter: 41.5 cm

• Coal layer thickness: 5 cm

• Coal type: Lite

• Technical capacity: 2750 m³/h

• Practical capacity: 2500 m³/h

• Flanges: 250 mm

🔹 Can-Inline 3000

• Model: Inline 3000

• Material: steel

• Length: 126.5 cm

• Total weight: 40.5 kg

• Weight of coal: 14.3 kg

• Diameter: 46.5 cm

• Coal layer thickness: 5 cm

• Coal type: Lite

• Technical capacity: 3300 m³/h

• Practical capacity: 3000 m³/h

• Flanges: 315 mm
