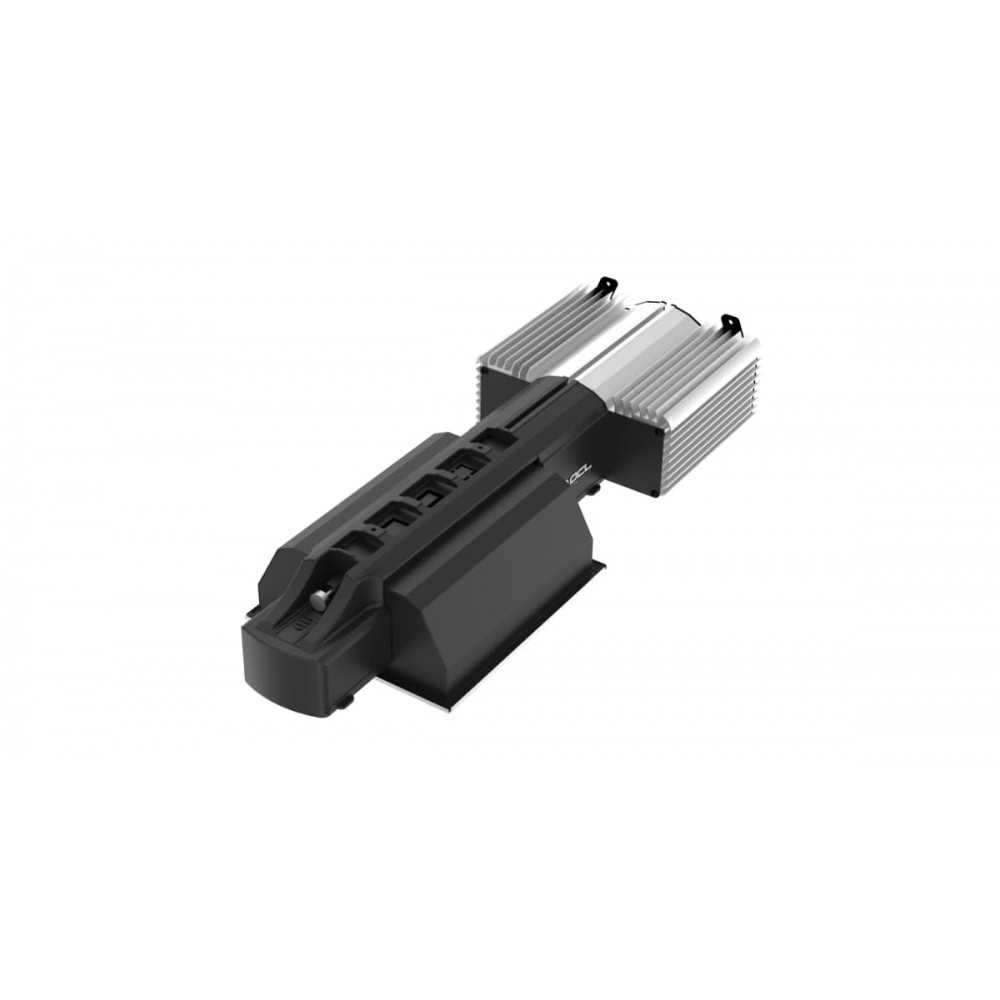

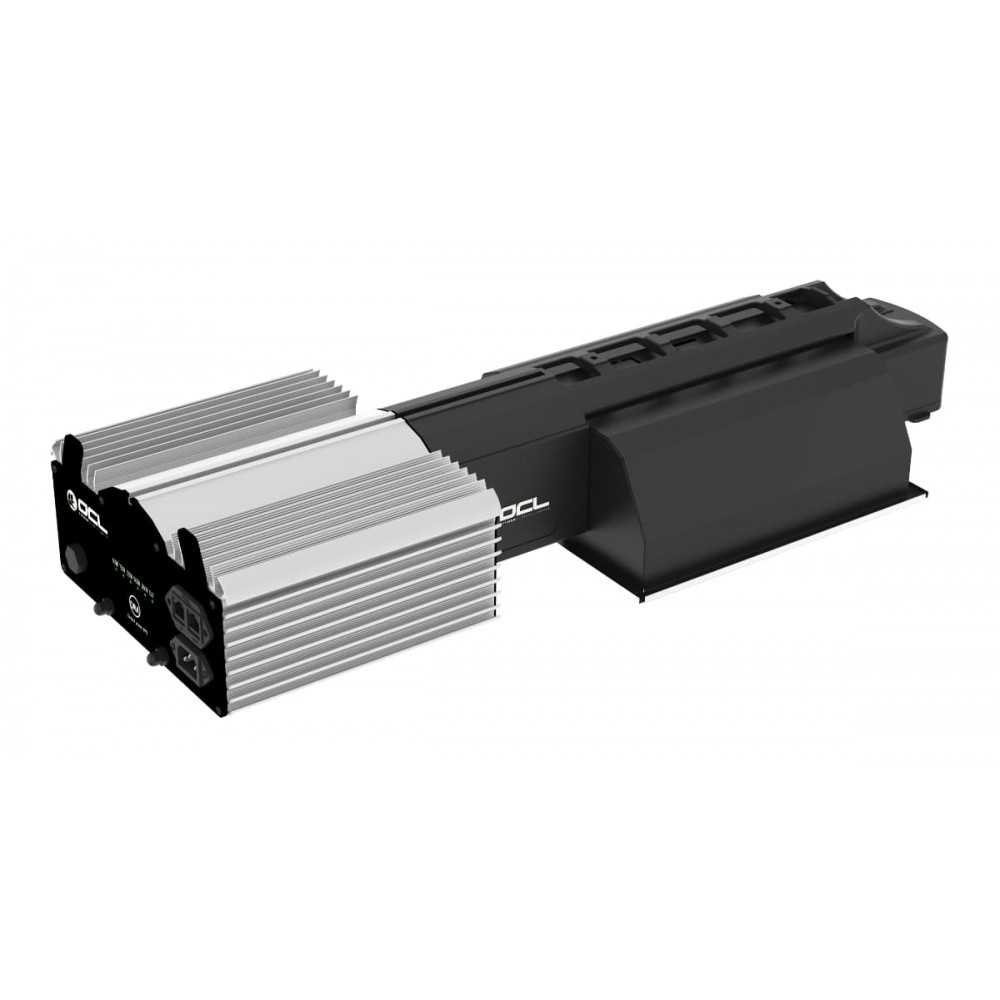

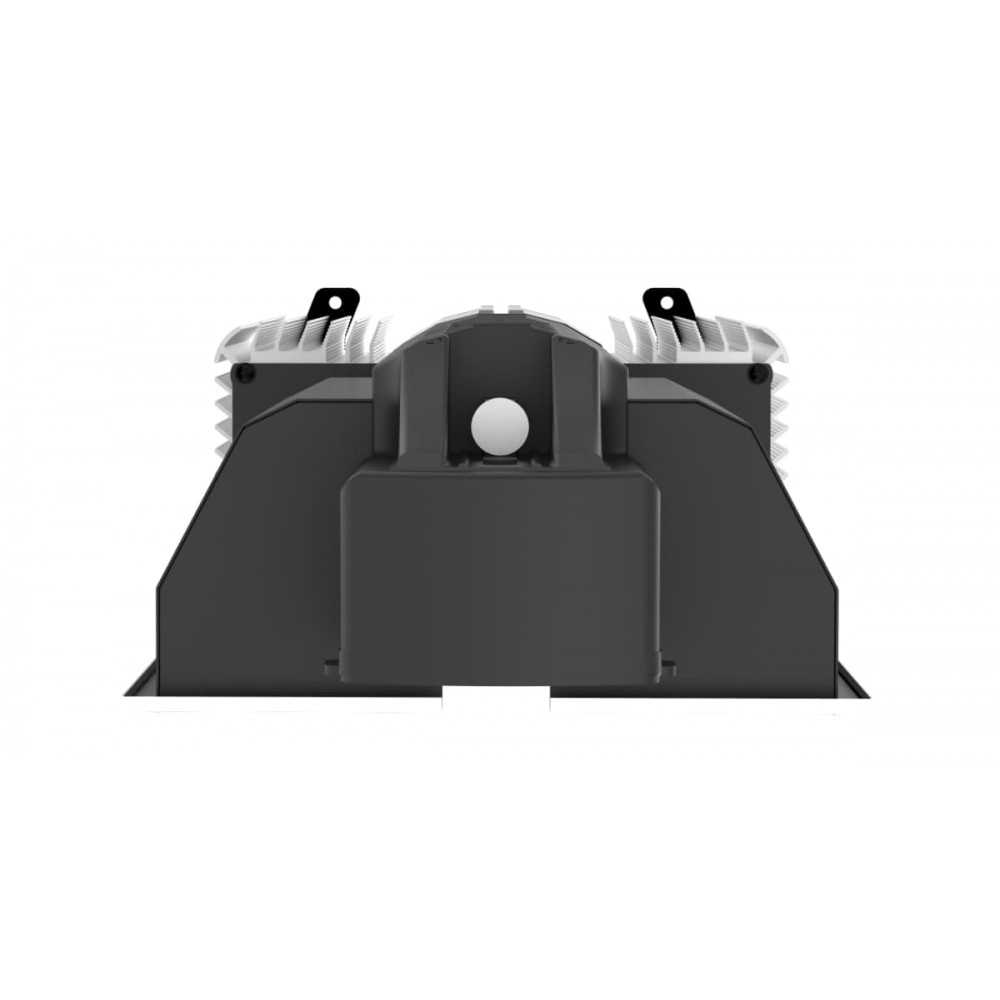

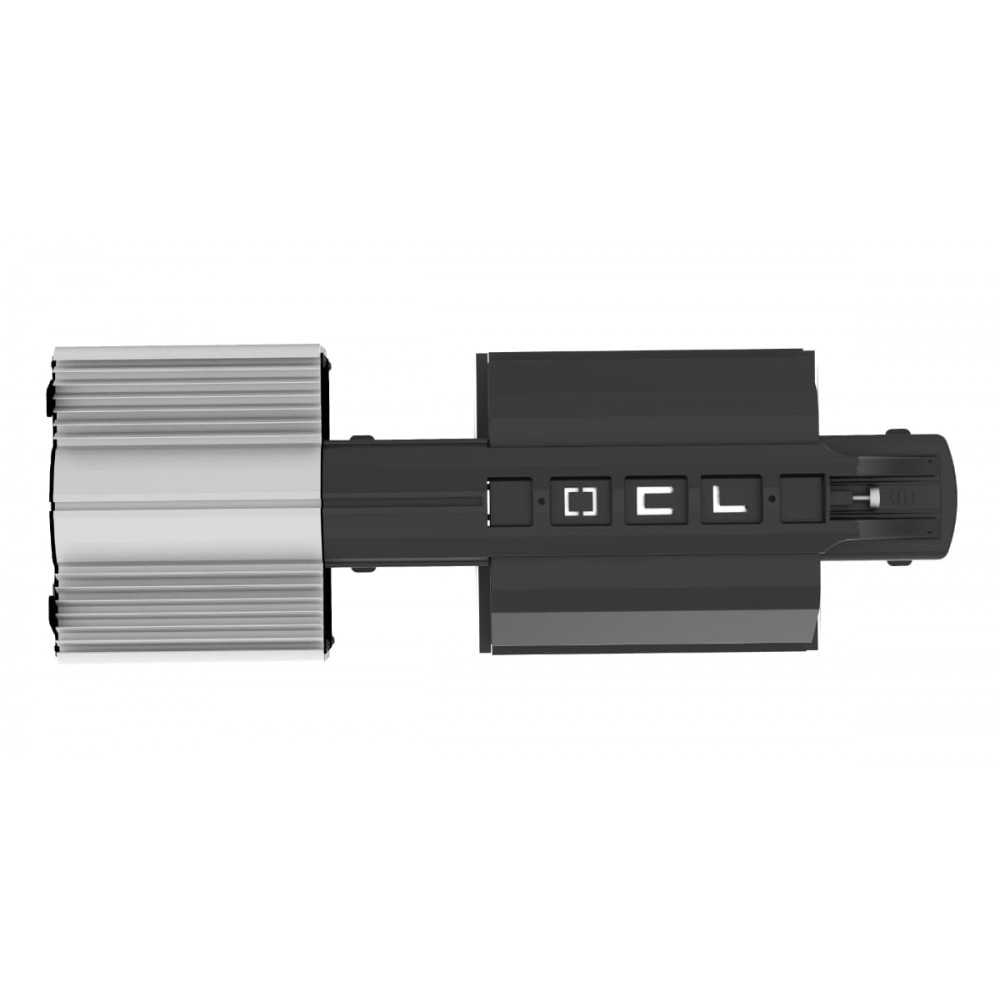

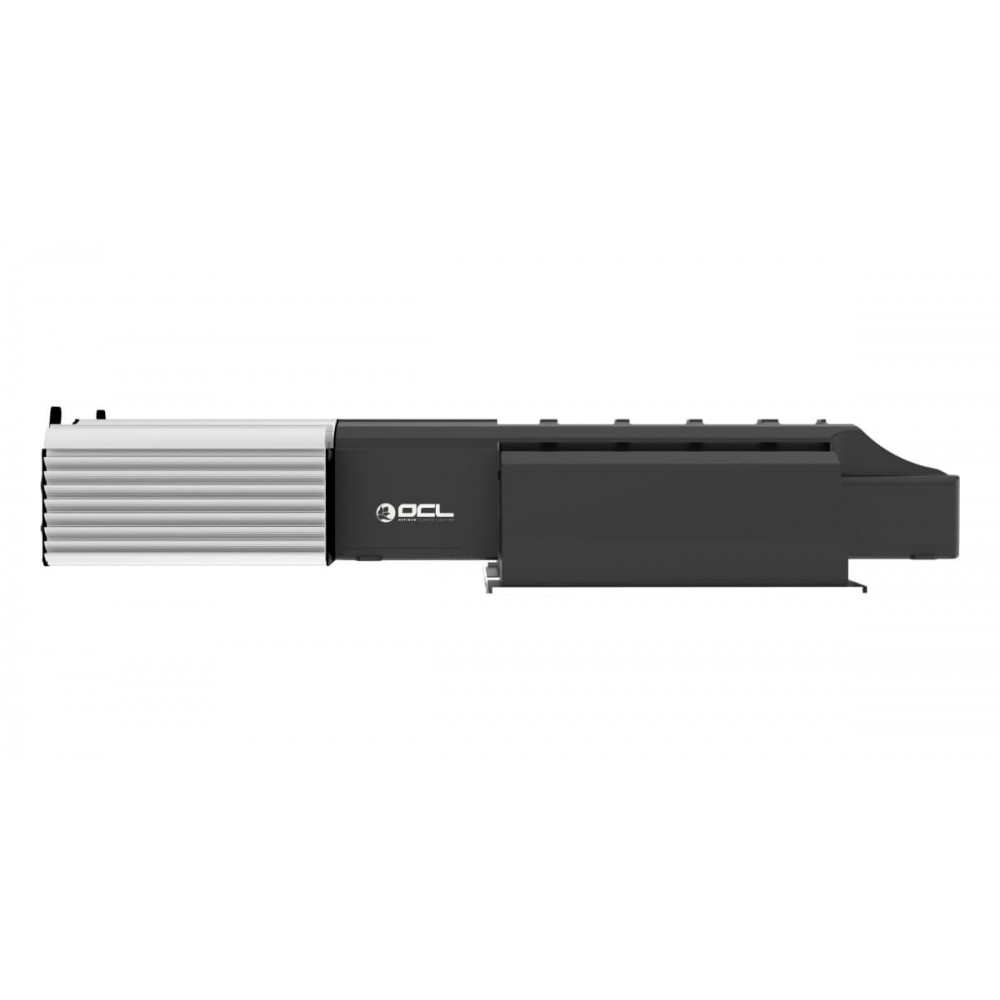

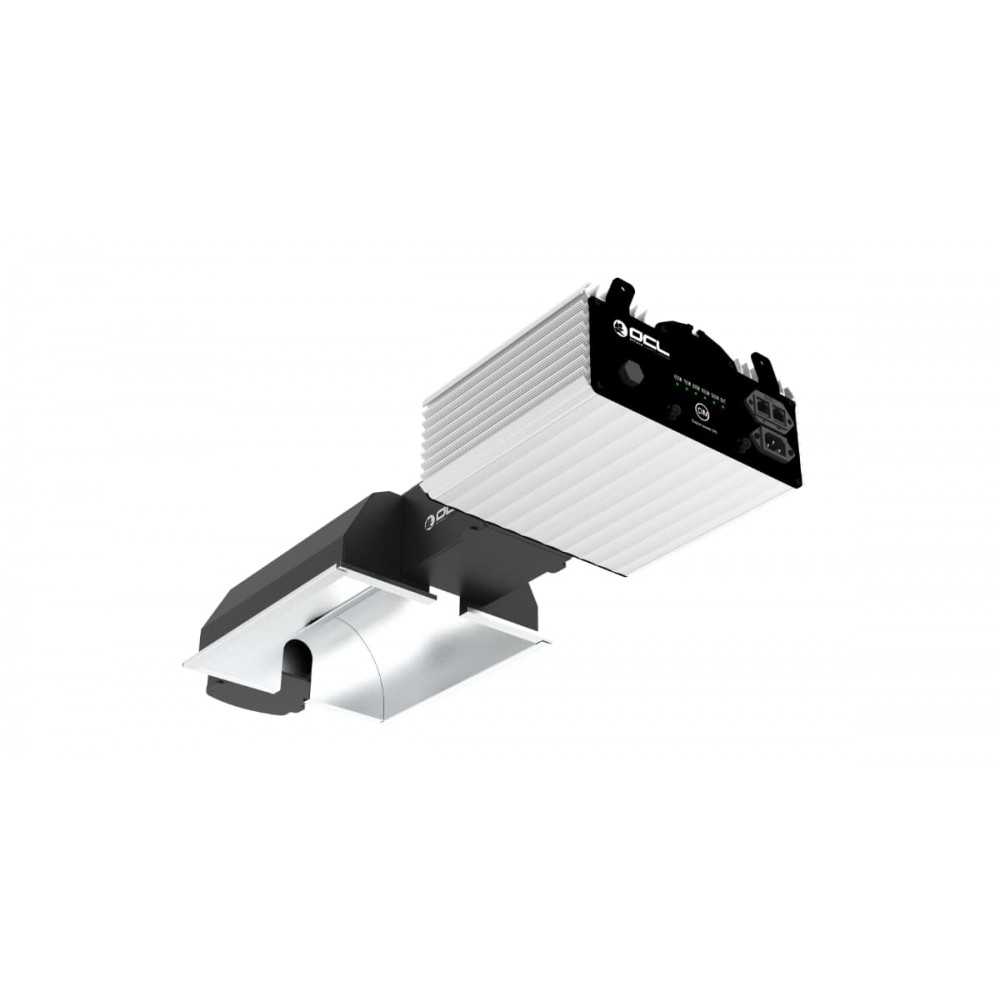

OCL 1000W lamp OCL Lighting  Complete HP Sodium lamp

OCL 1000W lamp

  Secure payment

(Postcard, Twint, on invoice and bank transfer)


Delivery 1 to 5 days / Free shipping in Switzerland from 60.- of purchase (except bulky items and b


Return of product within 7 days

The OCL Complete Lighting System is a professional high-efficiency device that simultaneously powers HPS double-ended lamps and metal halide lamps.
OCL DE HPS lamps have proven to have incredibly high PAR efficiency, a wider spectrum than traditional single-ended HPS lamps and only 5% depreciation for 10,000 hours. The OCL XXL series are upgraded models and are suitable for central control with OCL lighting controls.
Now you can have complete control of the lighting.
Designed with competition in mind, the XXL OCL series provides high efficiency and consistent uniform spread. This luminaire is the preferred choice of producers who know quality of light.
- No moving parts, completely silent and cool to the touch
- Suitable for 400V high frequency electronic horticultural lamps with 10-25% more output than HPS lamps
- High light maintenance: >95% per year so you can change your lamp once a year
- 96% efficient HR96 reflector, replaceable for optimum efficiency
- Controllable output: dim or increase your light to match fluctuating circumstances orincreasing stages
- Slight dimming that gradually changes the output when switched, eliminating pressure on the lamp
- Equipped with very high frequency OCL electronics
- No EMI issues through integrated design
- Dual internal protection through conformal coating and colloidal cooling ensures proper ballast operation in various environments

Features and Benefits

- Professional adjustable ultra high frequency lighting system 1000 W
- Comes with 1000 W 400 V DE EL OCL lamp, 2100 μmol s-1
- Incredibly high efficiency and balanced distribution (A++ energy label)
- Suitable for high pressure sodium and metal halide lamps
- High efficiency super reflective HR96 horticultural aluminum.
- Suitable for OCL or Siemens 0-10V controls
- Features Ignition Control™ & SenseSmart™ diagnostic testing
- Lightweight, easy to install and easily replaceable reflector
- Plug-and-play installation
- 50-115% control range
- Lights over 2 square meters with 1000 μmol m-2 s-1
- CE certified
- 25% less heat radiation
- 140° radiation angle


- Input voltage: 230V-240V (±10%)
- Input current: 4.46 A (at 100%)
- Input power: 1048 W (at 100%)
- Power factor: 0.99
- THD: - Input frequency: 50-60 Hz
- Input connection: IEC C14

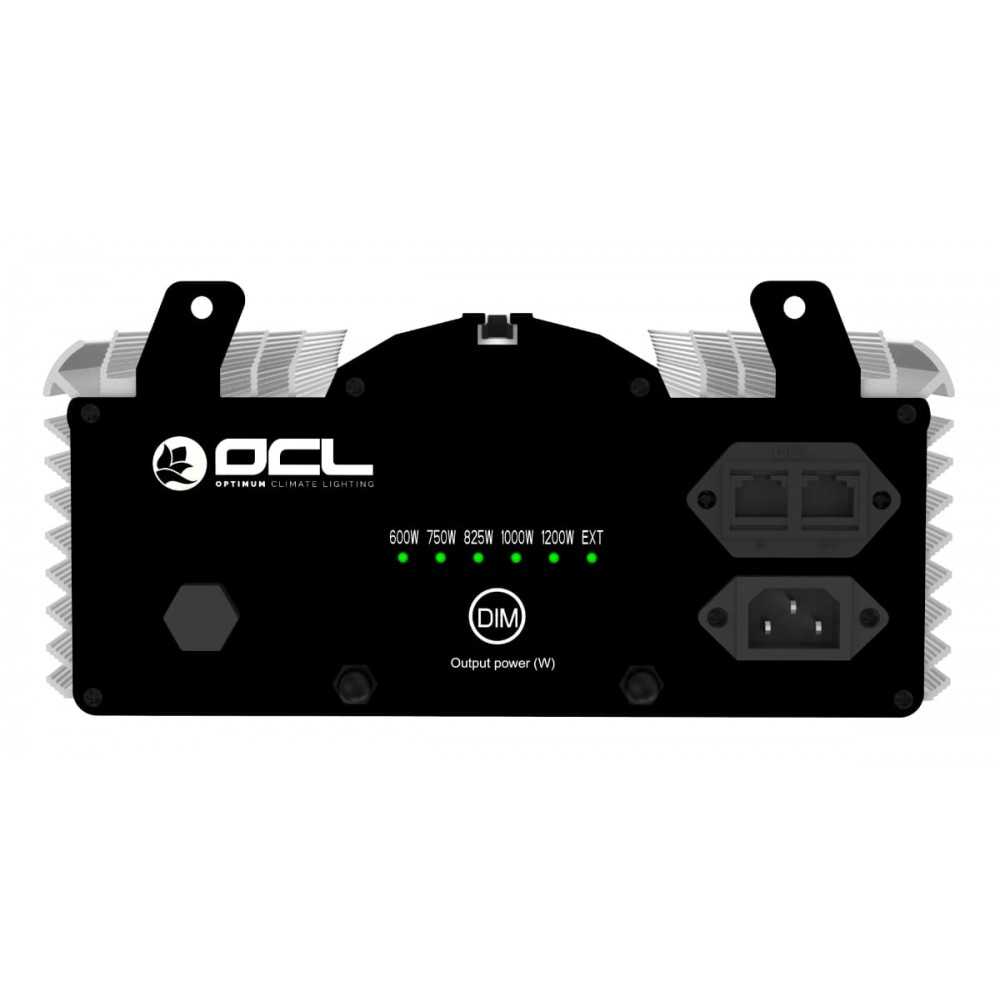

- Adjustable: 600 / 750 / 825 / 1000 / 1150 W / EXT
- Operating temp. (°C): 0-40°C
- Case temp. (°C): 70°C
- Certification: CE
- External dimming: OCL analog control protocol (- External dimming connector: Built-in RJ45 connector

Accessories included: User manual, power cord, 2 RJ45 control cables for Plug and Play installation, OCL electronic lamp, 3 years warranty.

OCL will release a controller compatible with these lamps in the coming months.



Data sheet

length 700 mm width 240 mm height 110
