AQUA X HCS1 TrolMaster controller

Trolmaster Aqua X

Aqua-X irrigation control system （NFS-1）

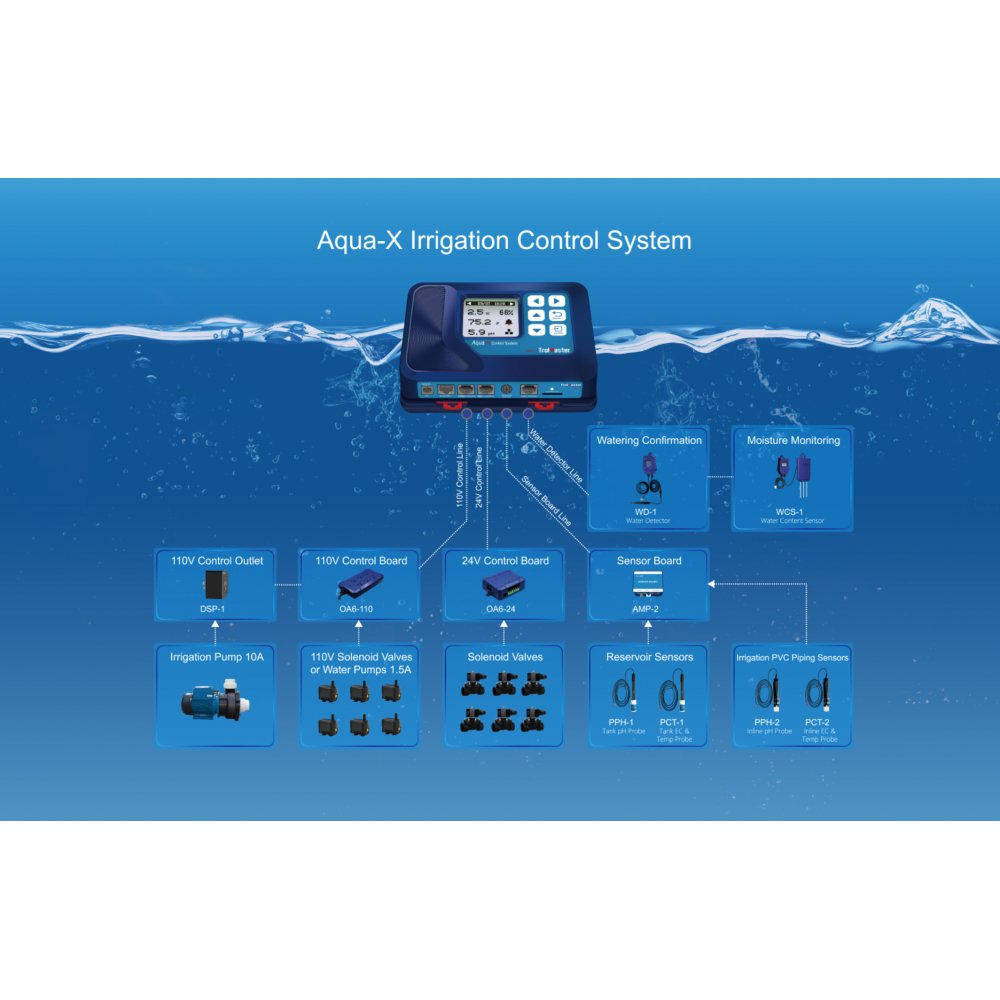

Aqua-X system is a professional quality irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand. The Aqua-X is designed to control up to 30 separate irrigation zones (24 VAC solenoid valves or 120 VAC pumps), The Aqua-X monitors pH/EC and water temperature as well as monitoring actual moisture levels of the growing medium using up to (8) Water Content Sensors connected to a single Aqua-x controller. Timers can be configured to be recirculation timers or to run at specific times and durations of the day. With the free TrolMaster app, the user can access all system settings and alerts from anywhere at any time.

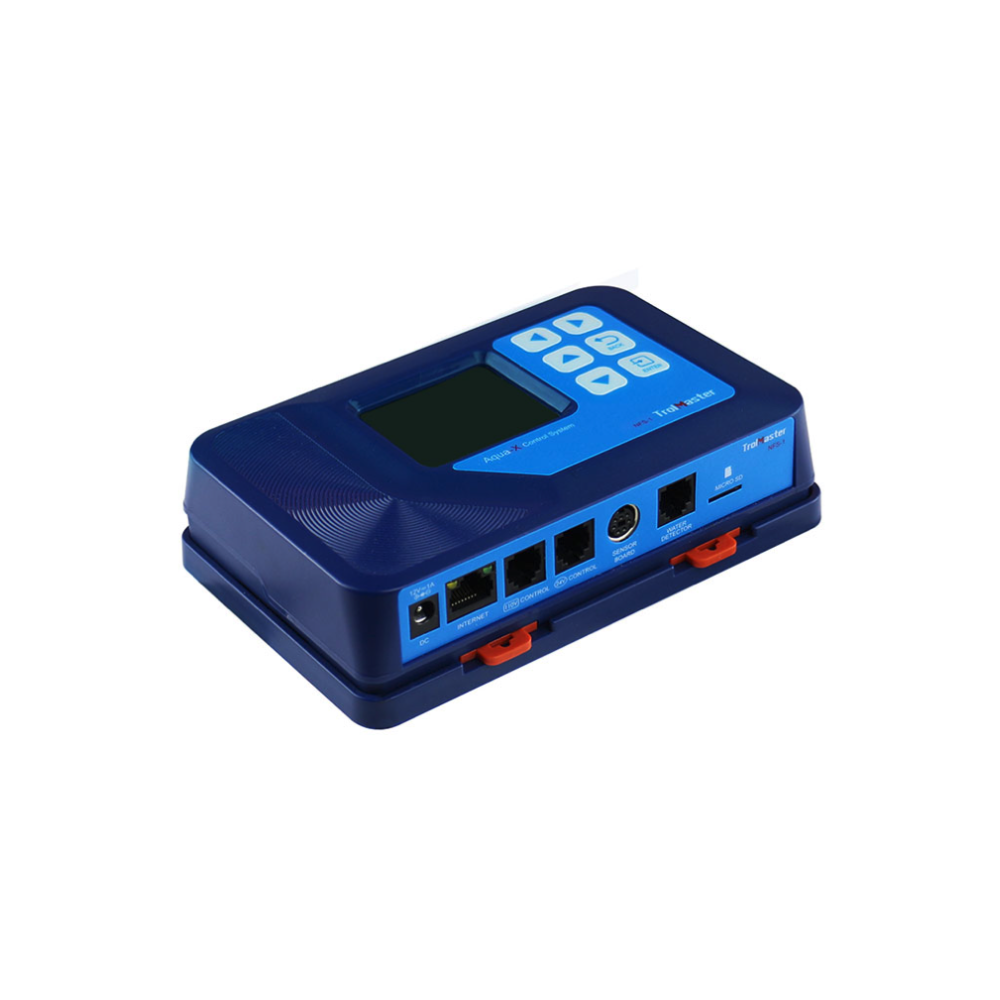

The NFS-1 is the brain of the Aqua-X system. It comes with a WD-1 water sensor for leak alert and watering confirmation.

LCD display, easy operation

Multiple room management, multiple zone delivery

Controls up to 30 outputs (24V or 110V)

PH, EC and temperature monitoring

Free smartphone app with alerts and history graph

Data logging

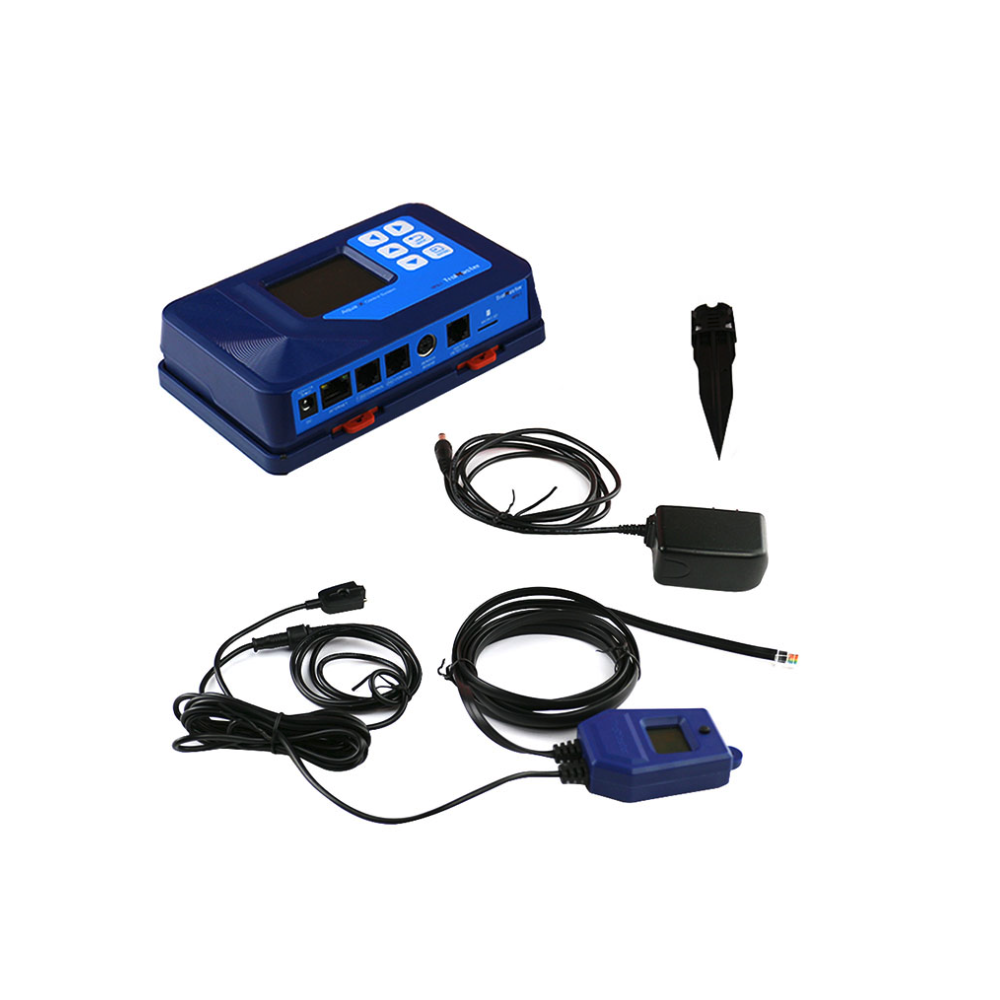

1 x Aqua-X irrigation controller

1 x water sensor

1 x touch point

1 x 12V power adapter

Input voltage: 100-240 VAC, 50 / 60Hz

Control board OA6-24 24 V: Max. 5 pieces per set *

Control board OA6-110 110 V: Max. 5 pieces per set *

DSP-1 Program Device Station: Max. 5 pieces per set

Water sensor: Max. 30 pieces per set

Water Content Sensor: Max. 8 pieces per set

AMP-2 Sensor Card: Max. 1 pc per set

EC / Temp Sensor PCT-1 or PCT-2: Max. 1 pc per set

PH Sensor PPH-1 or PPH-2: Max. 1 pc per set
