Substrate Moisture Sensor WCS-1 TrolMaster

Product Details

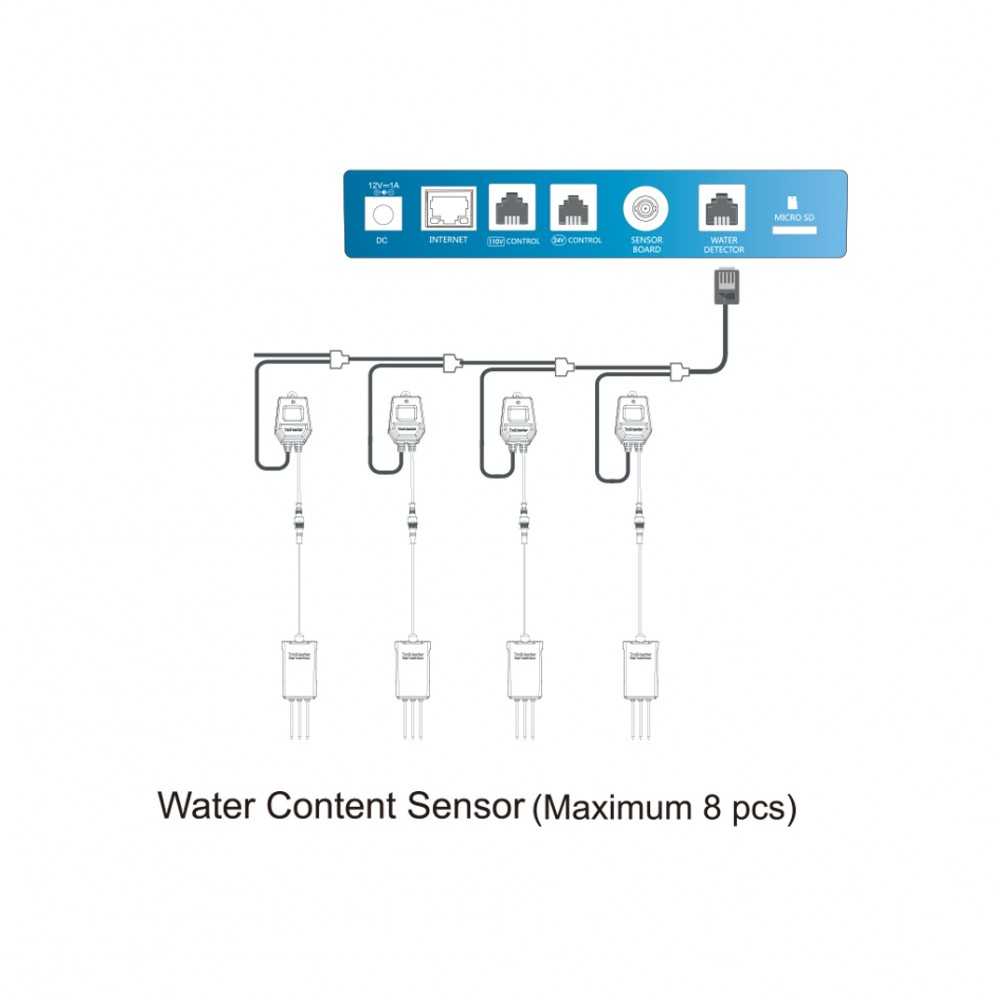

The WCS-1 moisture content sensor allows the user to monitor the % of water/nutrients in the growing medium. The moisture / water content level is displayed in real time on the WCS module itself, the Aqua-x and the APP. This data is displayed on a graph (via the app) and helps the user to visualize drying time and adjust their irrigation timers / irrigation cycles. Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the value displayed on the Aqua-x and APP will be the AVERAGE of all sensors.

LCD display, easy operation

Addressing button

Real-time water content measurement

Alarm when set point is exceeded

1 x water content sensor

1 x RJ12 T-splitter

1 x 16' RJ12 cable

Input voltage: 12 VDC

Maximum input current: 0.1 A

Working environments: temperature 32°-122°F, humidity=90% Measuring range: 0 ~ 100 %, temperature=100

Measuring range: 0 ~ 100 %

Package dimensions: 275 mm(W) x 164 mm(L) x 62 mm(H)
