24V control board (OA6-24)
The OA6-24 control board is designed to control multiple 24 Vac solenoid valves.
It provides a simple and efficient method of controlling up to 6 valves... each with individual timer settings. Up to 5 OA6-24's can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a "master pump link" by using a DSP-1 with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic "pump link" between the DSP-1 and the OA6-24. When one of the 24 VAC irrigation zones is activated on the OA6-24, the DSP-1 automatically turns on the pump.

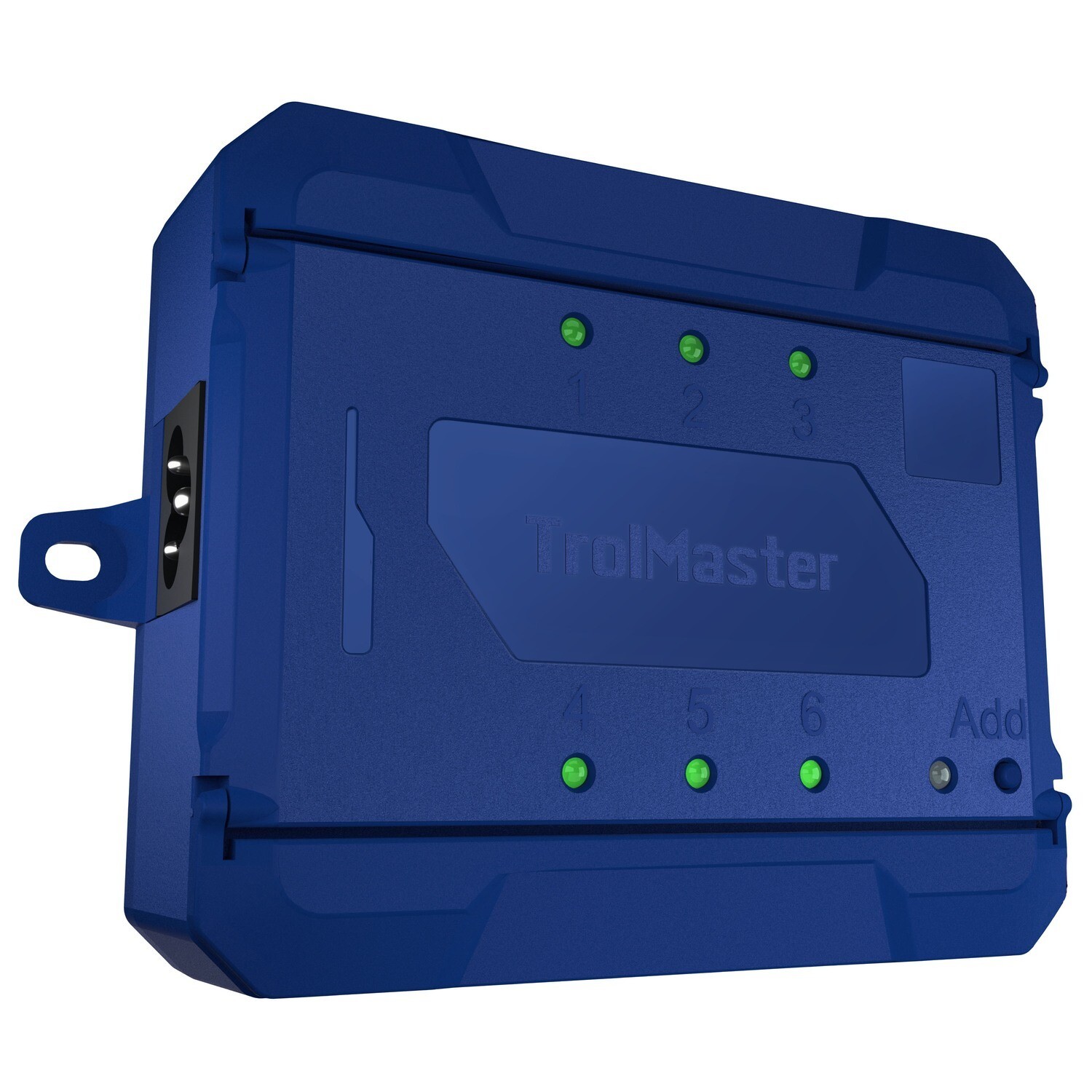

Power LED indicator
Addressing button
6 individually controlled 24V outputs
Individual LED indicator for each output
Dual RJ12 cable jacks for daisy chain connectivity

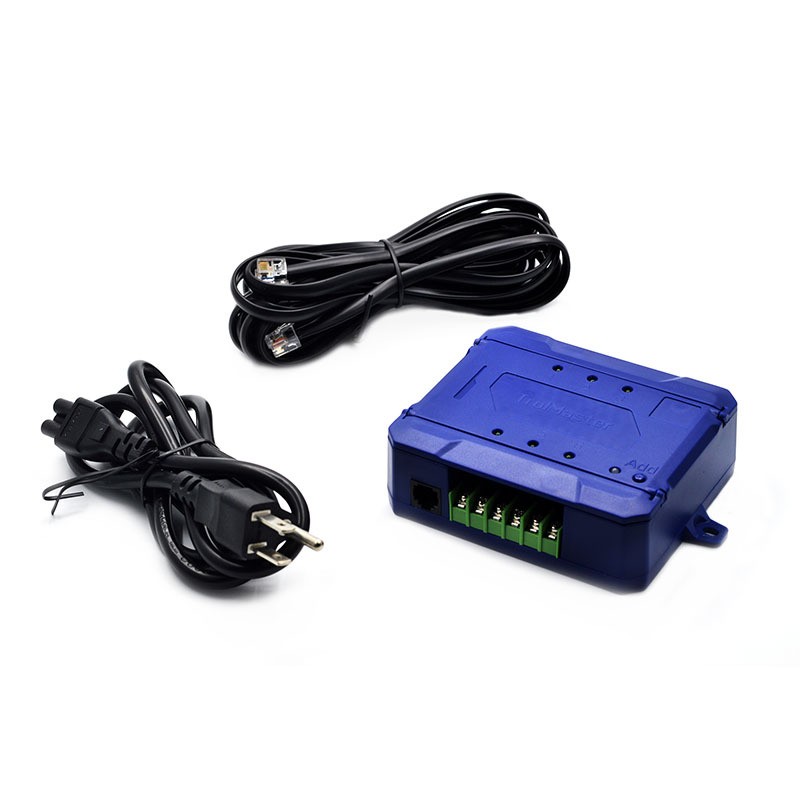

1 x 24V control board
1 x 4.8m RJ12 cable
Input voltage: 110-240 VAC
Maximum input current: 0.2 A
Maximum output voltage/current: 24 VAC/0.2 A per output
Working environments: temperature 32°-122°F, humidity=90
Packaging dimensions: 275 mm (W) x 164 mm (L) x 40 mm (H)
