KIT Co2 Pro with TrolMaster valve

Product details

TROLMASTER is a breakthrough in technology and automation, developed in California this management system is intuitive and scalable, so it leaves the choice of several different possibilities to automate a growing space.

In the case of the use of CO2 in open circuit, there is too much loss of CO2 when the air extractor is in operation.

To counter this loss and close the CO2 valve when the extractor is running, we have created the following kit that allows you to manage

Daytime temperature

The night temperature

The rate of CO2

Close the CO2 valve when the extractor is on

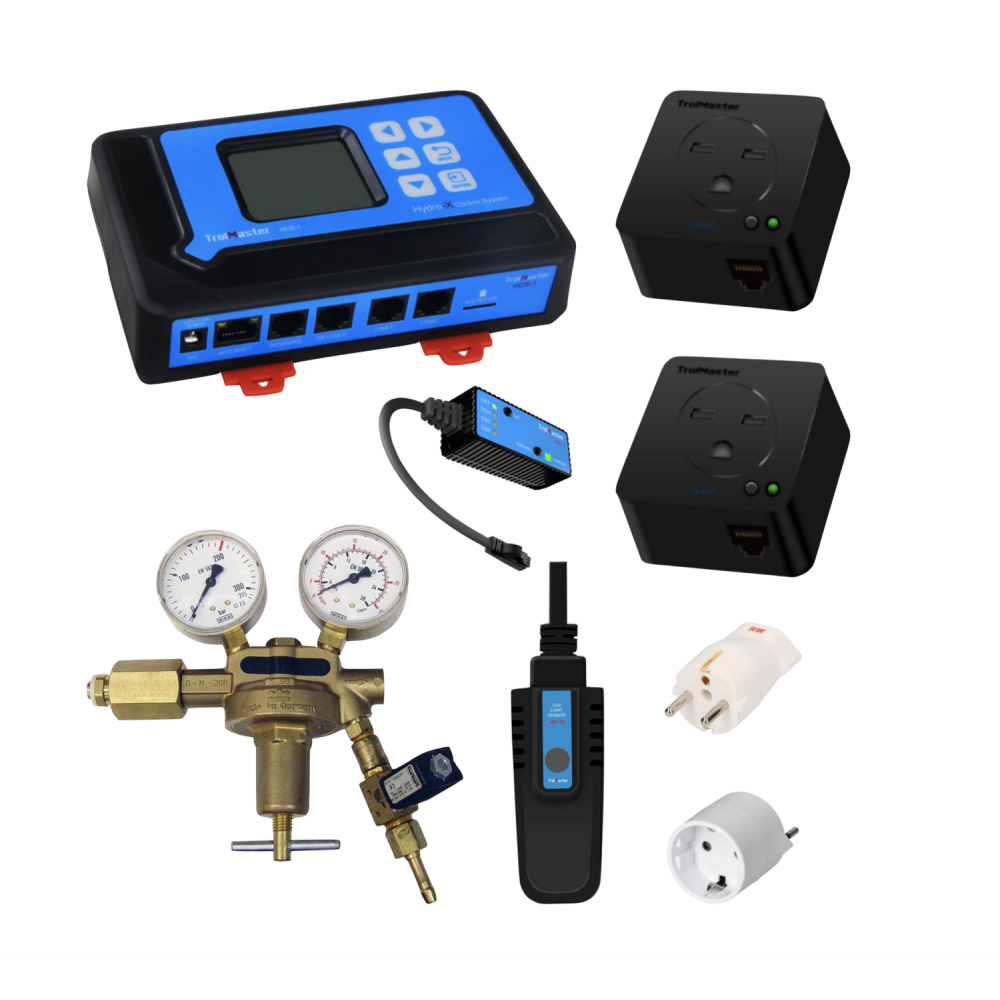

THE KIT IS COMPOSED OF:

1x HYDRO-X HCS1 for the management of the extractors + air intractors and CO2 valve

1x MBS-S8 CO2 sensor

1x CO2 valve on 230V AC socket

1x DSC Relay 230v for CO2 valve

1x DST Relay for extractors + air intractors (maximum 10A 2'300 W)

1x DCC-1 switches off the CO2 when the extractor is on

2x Euro-Swiss adapter

2x Adapter Switzerland-Euro

Telephone and video support for wiring and programming.

PROGRAMMATION

DCC-1 CO2 cut-off

Value (DST and INTERLOCK)

DST extractor

Value with led (ABOVE / 32 degrees day / 22 degrees night)

Value with HPS (ABOVE / 28 degrees day / 22 degrees night)

Co2 temperature

Value with LED (BELOW / 30 degrees day / 22 degrees night)

Value with HPS (BELOW / 26 degrees day / 22 degrees night)

DSC co2 valve

Growth value: 300PPM to 600 PPM of CO2

Flowering: 1500 PPM of CO2

Dead band

Dead band CO2: 100 PPM

Dead band temperature: 2 degrees
