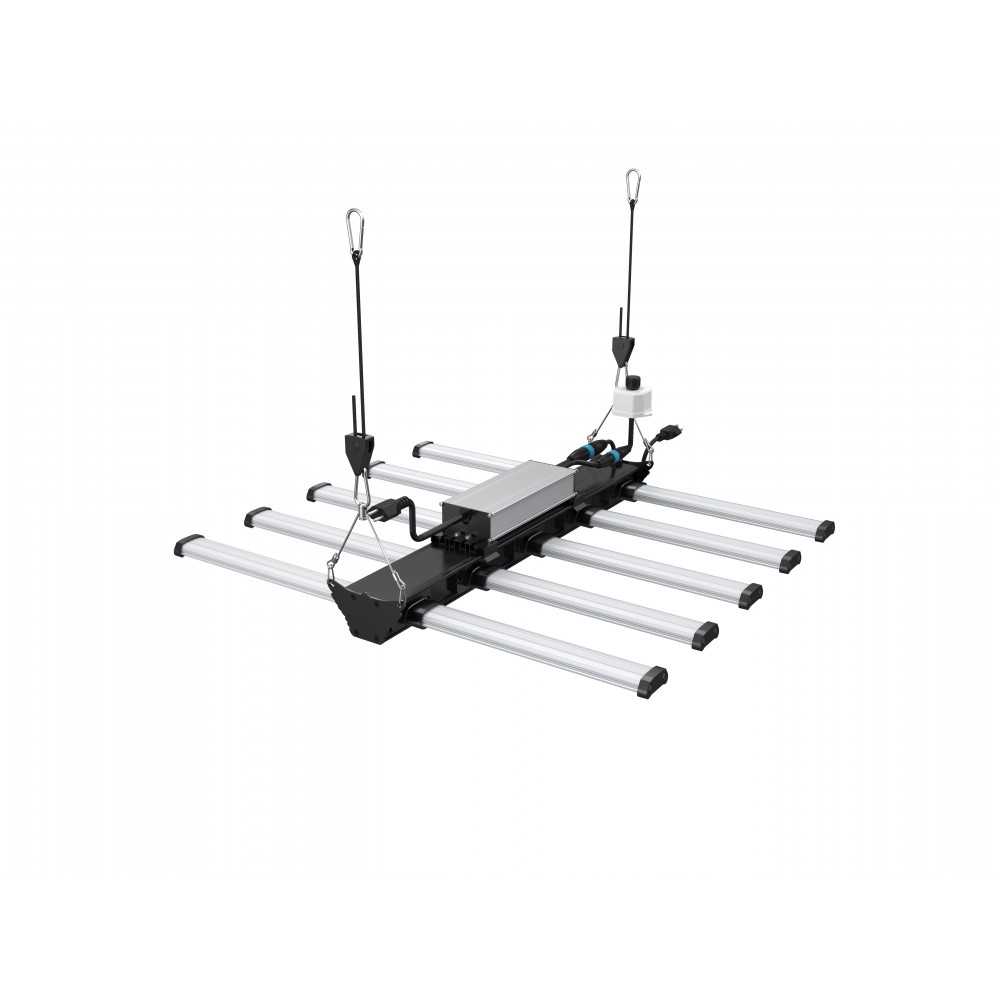

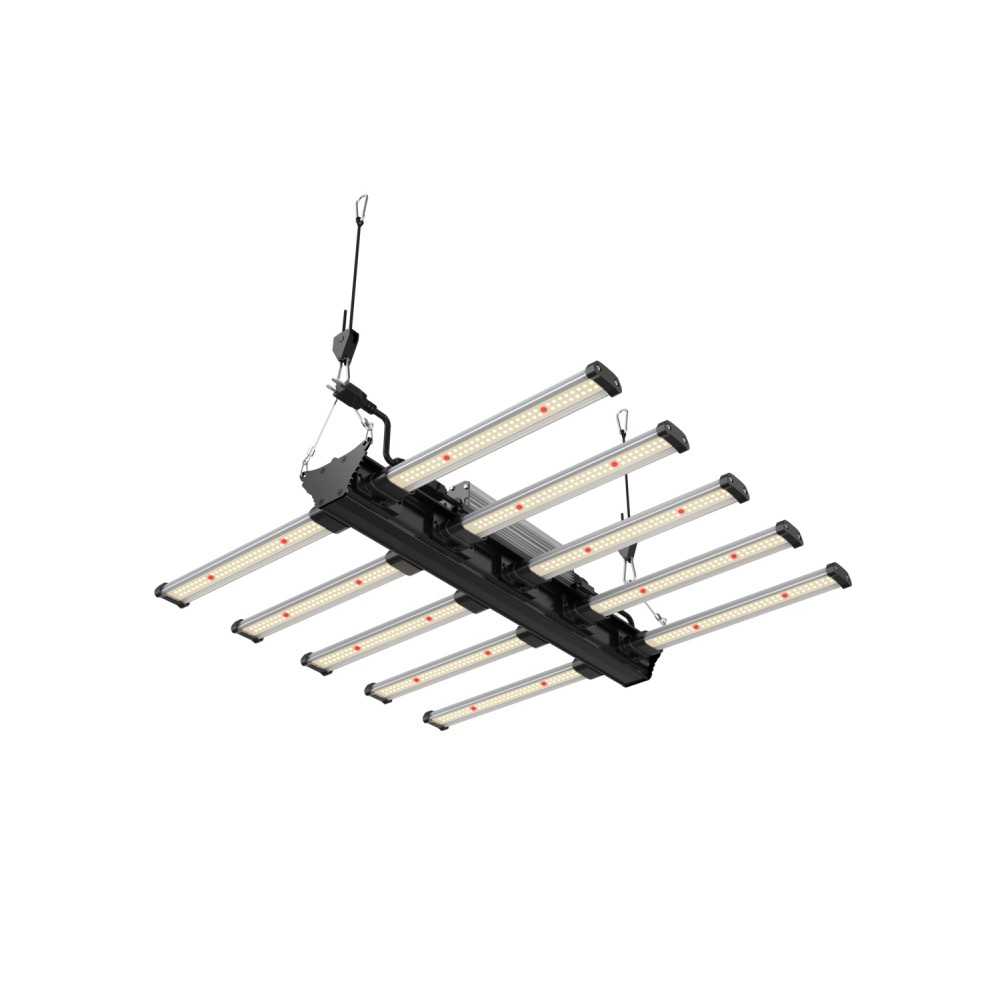

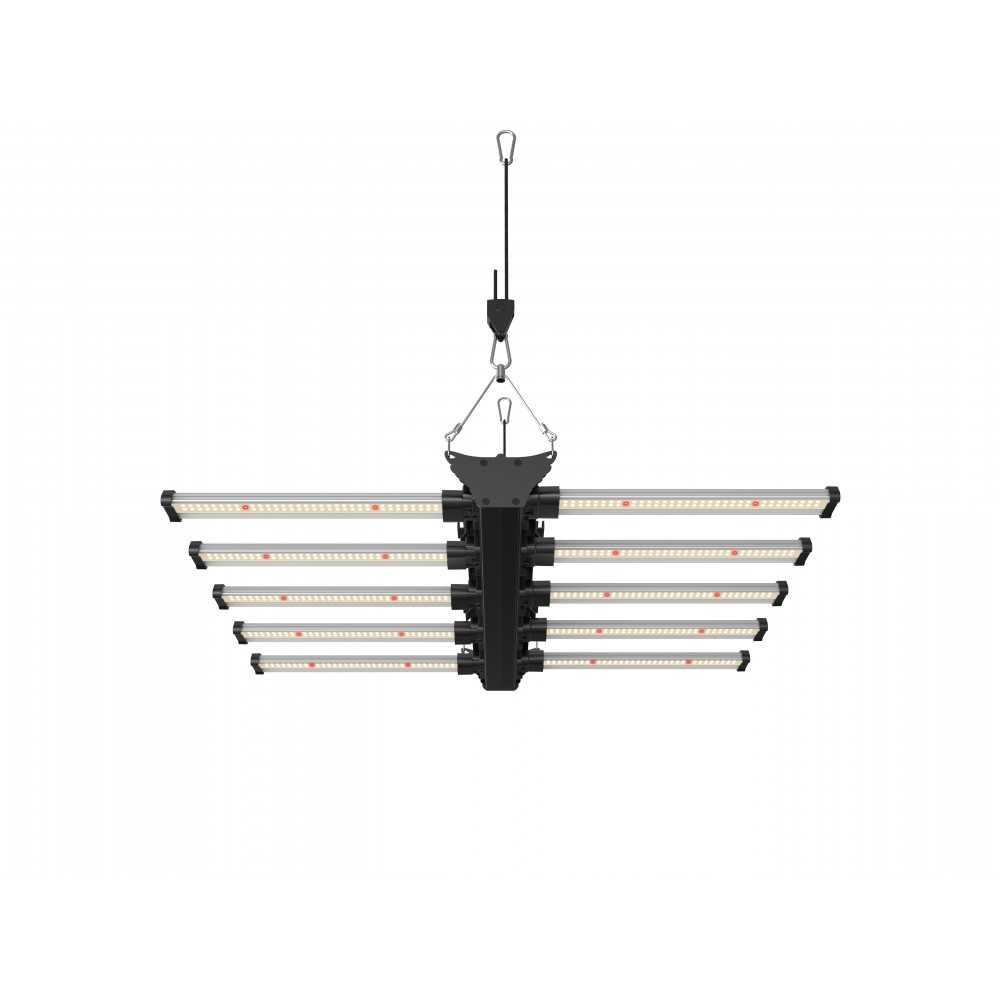

A high-tech jewel, the F.O.G BLACK SERIES range of LED horticultural lighting fixtures has been developed by our R&D department in Switzerland, to offer high-performance, modular products with the best value for money.
Designed with reliable, high-performance components, its structure distributes light perfectly around the edges of the crop.
This range of high-tech lights is equipped with the latest F.O.G 660nm 4.5umol/d red LED chips and Samsung.
To achieve this technological feat, everything has been redesigned.
- New LED chip and transformer technologies.
- Reduced weight and volume for lower shipping costs.
3 SPECTRUMS IN 1
Its 3-in-1 spectrum allows the luminaire to be used in all types of situations, offering significant advantages.
SPECTRE 1 = increase in active ingredients, thc, cbd, terpenes, flavors.
SPECTRE 2 = Tight internodes and production of large leaves for more photosynthesis.
SPECTRE 3 = Yield and resin production.
Rooting of cuttings and germination.
Place the light 50cm from the plants and set the light intensity to 25%.
Potting
Light intensity at 25% for 3 days with initial watering at 1.1 - 1.2 EC
Growth
Increase light intensity to 50% with watering at 1.3 - 1.4 EC
Intensive growth
Increase light intensity to 75% with watering at 1.6 - 2.0 EC
Flowering
Place fixture 20 - 30cm from plants and set light intensity to 100% (EC 2.0 - 2.6).
Possible output:
+0 to 2Gr/W (0 to 600 gr on 1m x1m) (0 to 500 gr on 80cm x 80cm)
Can increase:
+0 to 79% THC, CBD, CBC, CNG, Delta 8.
Can increase terpenes by:
+0 à 28.5%
ADVANTAGES
1. More even distribution of light for a more homogeneous crop and greater yield at the edges.
2. No direct heat on plants = year-round harvest with less risk of disease.
3. 40 to 50% savings in electricity consumption.
4. Final product can be more compact and produce more weight, resin, terpenes, thc, cbd and flavor.
5. Components replaceable one by one.
6. Transformer can be moved out of the growing area in summer.
7. Dimmer 25% - 50% - 75% - 100%
8. 0-10v dimmable with TROLMASTER controllers
OPTIONS

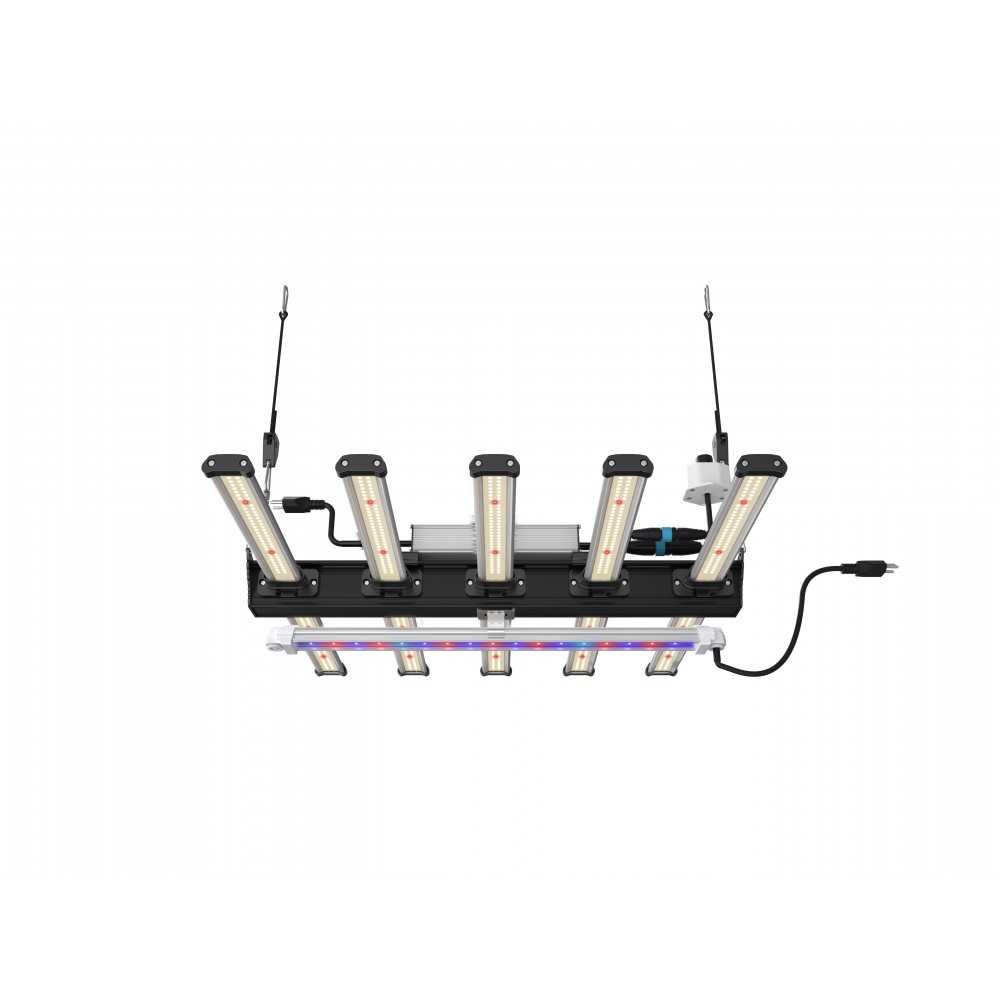

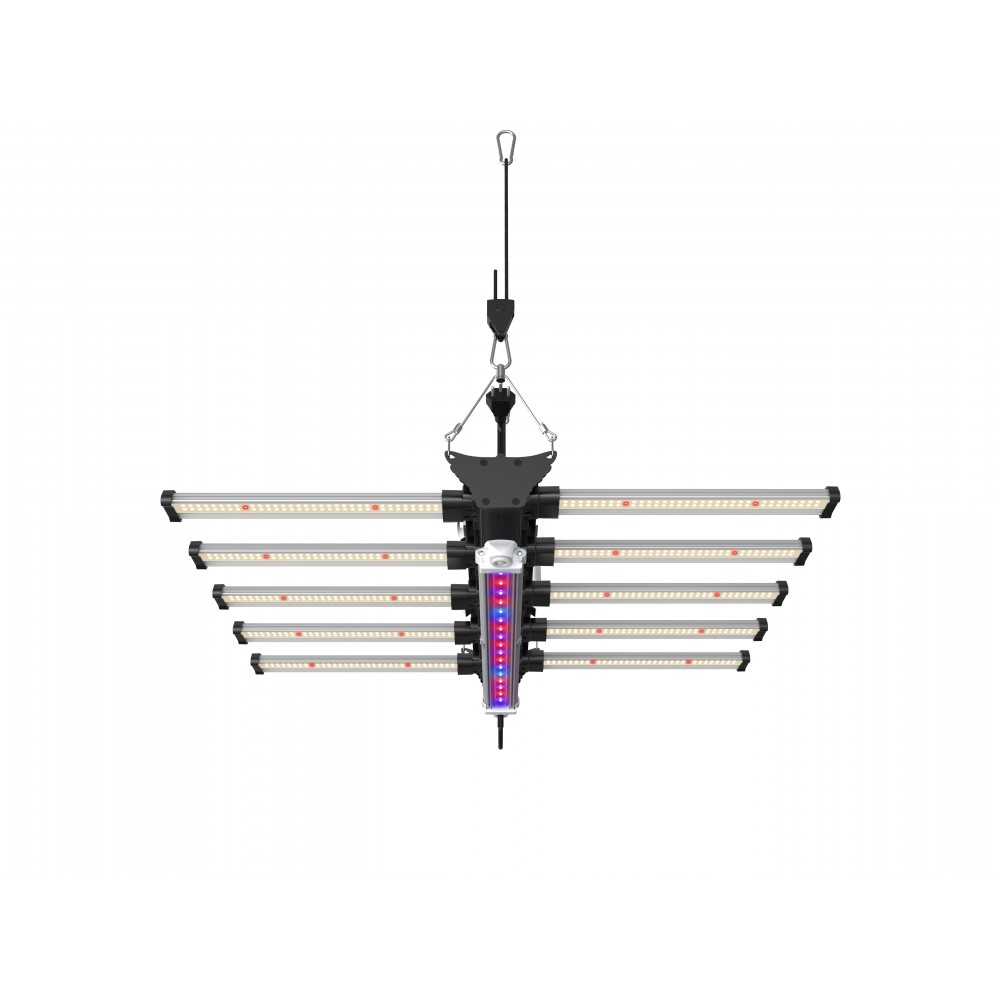

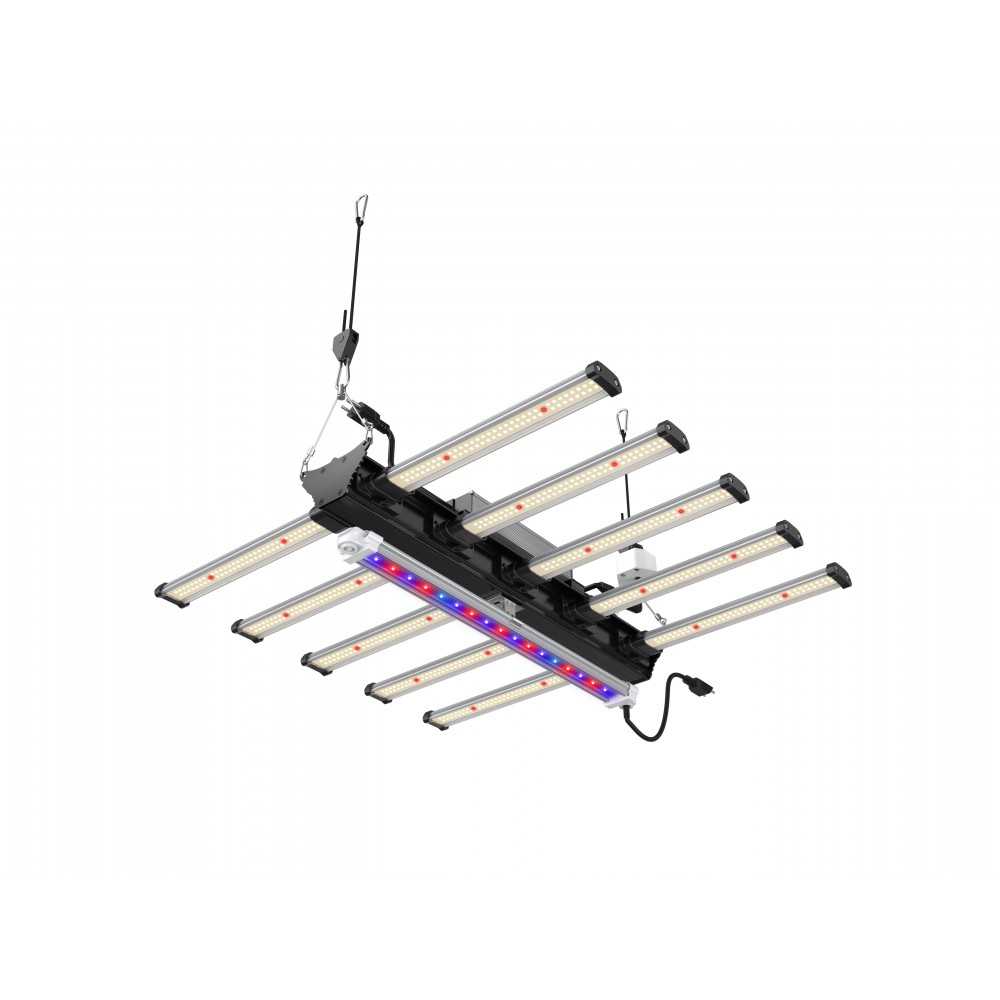

- 1x 60cm LED bars 30w UVA - UVB - IR
- 4m cable to move transformer out of growing area.
Power*: ( 300w +-10% )
PPF* output: 870 umol/s
System efficiency: 2.9 umol/d
Input voltage: 100-277 V
Power factor: 0.98
Warranty: 3 years
Dimensions: 75 x 68 x 13.5 cm
Weight: 4.6 kg
IP RATING: 54
Certifications: CE, ROHS
Variation: 0-10V
BTU: 2500
Tolerance: +-10
Do not use corrosive or phytosanitary products on silicone or LED chip reflectors. Max. ambient temperature: 35°c
