Variation kit with waterproof connector.

Trolmaster

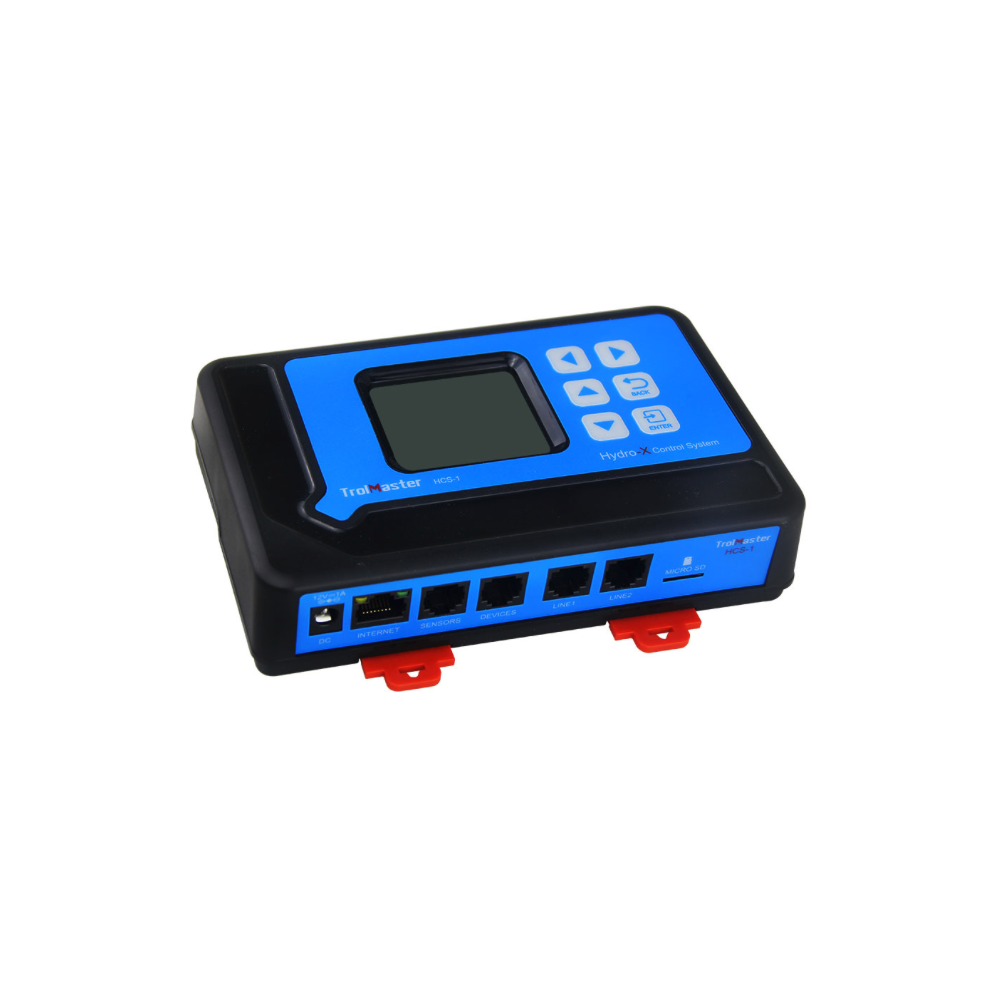

The Hydro-X system is a professional quality single zone environmental controller. It is a fully customizable modular system. Installation is simple and the system is easy to expand.

The Hydro-X system can control almost anything in a growing area. It offers over 17 distinct types of control "modules" to connect to devices such as HVAC systems, mini-split AC, dehumidifiers, humidifiers, CO2, HID and LED lighting, irrigation pumps/valves, exhaust fans and more.

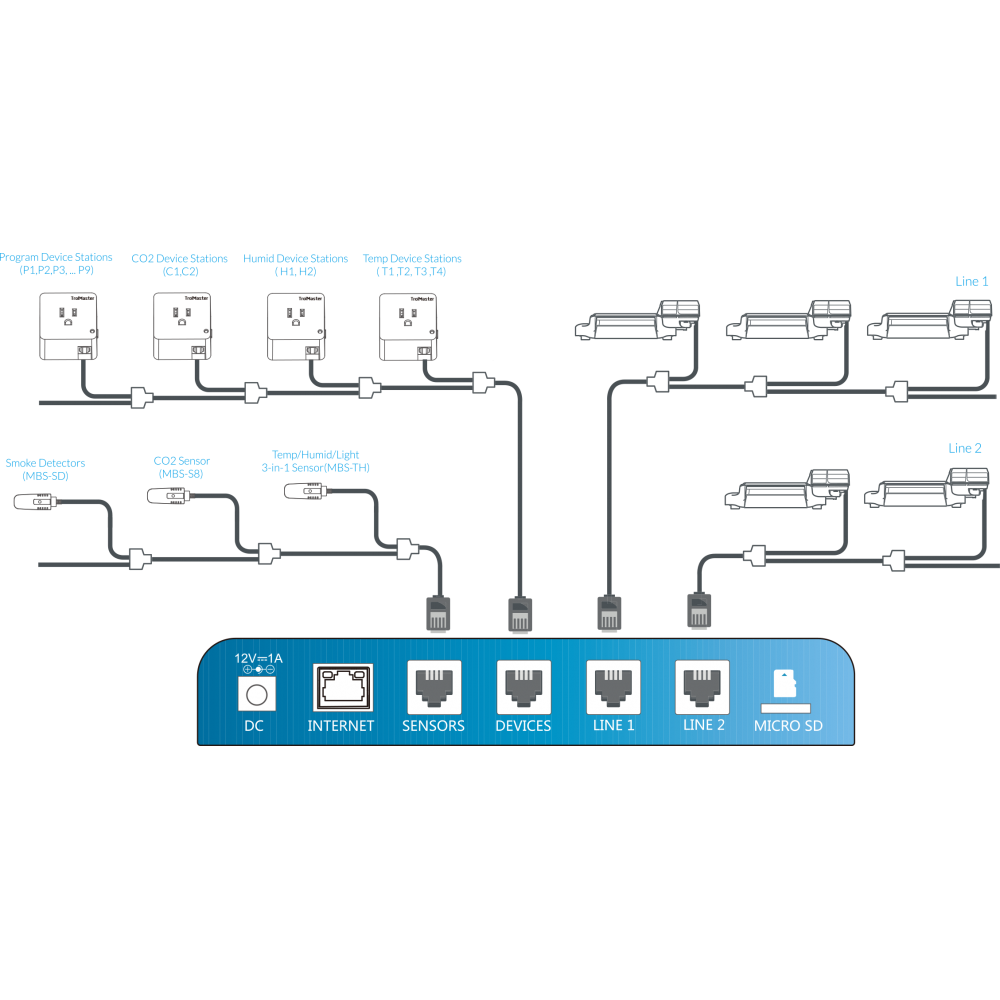

To eliminate interference in the growing environment, all sensors and control modules are WIRED via standard RJ12 cables and splitters, making installation as simple as plug-and-play.

A 3-in-1 Temp/Wet/Light sensor, CO2 sensor, smoke and water detectors can be daisy-chained to the sensor channel. Up to 5 smoke detectors and 5 water leakage sensors can be connected. A new PAR meter has been released to measure the light intensity to allow the system to dim the grow lights according to the PPFD parameter.

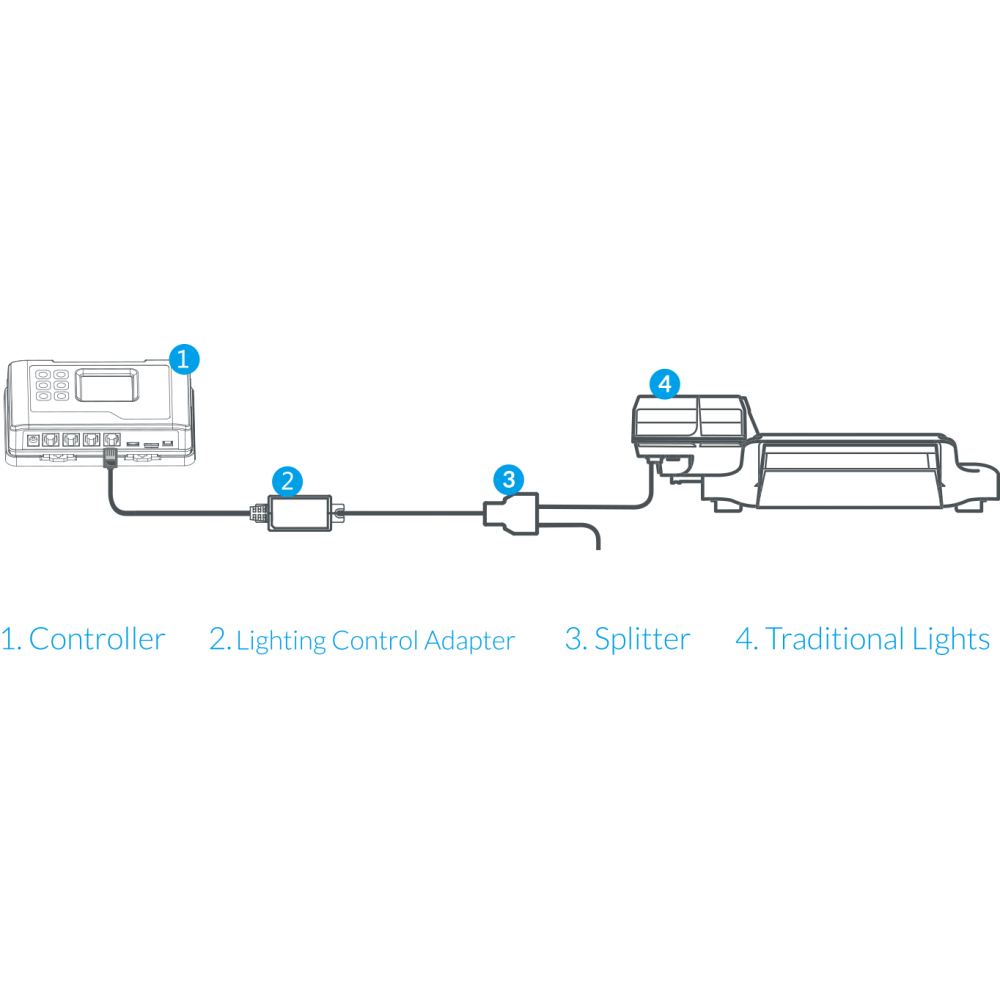

There are 2 channels of lighting control to control up to 512 led lights on two separate channels. The system can also operate different lighting systems at the same time. Almost ALL lighting systems in the market can be controlled by the system by different lighting control adapters. Currently we have LMA-11 for Phantom; LMA-12 for Dimlux; LMA-13 for Sun System; LMA-14 for HIDs like Gavita / Nanolux / Luxx / Growers Choice / Illuminar / PL and LEDs like F.O.G / Fluence / Next light / Spectrum King; LMA-15 for DLI; LMA-T for ThinkGrow

All other controlled modules are connected to the device channel. For temperature control: we have TS-1 / TS-2 for HVAC systems; ARS-1 for Mini Split system; DST-1 / DST-2 for temperature controlled outputs. For humidity control: we have HS-1 for most commercial dehumidifiers have "low voltage" control; DSH-1 / DSH-2 for humidity controlled outputs. There is also a CO2 controlled output (DSC-1), a timer controlled output (DSP-1) and a dry contact controlled output (DSD-1).

One of the most powerful features of the Hydro-X system is Internet connectivity to connect the unit to Amazon's cloud service. The free TrolMaster smartphone app allows for monitoring, control and push alerts anytime, anywhere.

Input voltage: 100-240, 50 / 60Hz

Certifications: ETL / FCC / CE

3-in-1 (Temp / Humidity / CO2) Sensor: Max 1 pc per set

CO2 Sensor: Max 1 pc per set

Smoke Detector: Max 5 pcs per set

Variation line: 300m max

40 HPS 1'000w per line of the same power.

Total 2 lines: 80 lamps HPS 1'000w in total.

Dimming: 0-10V

256 LED lamps per line of the same power.

Total 2 lines: 512 LED lamps in total.

Water sensors: Max 5 pcs per set

Temp Unit Stations: Max 4 pcs per set

Wet unit stations: Max 2 pcs per set

CO2 Unit Stations: Max 2 pcs per set

Peripheral program stations: Max 9 pcs per set
