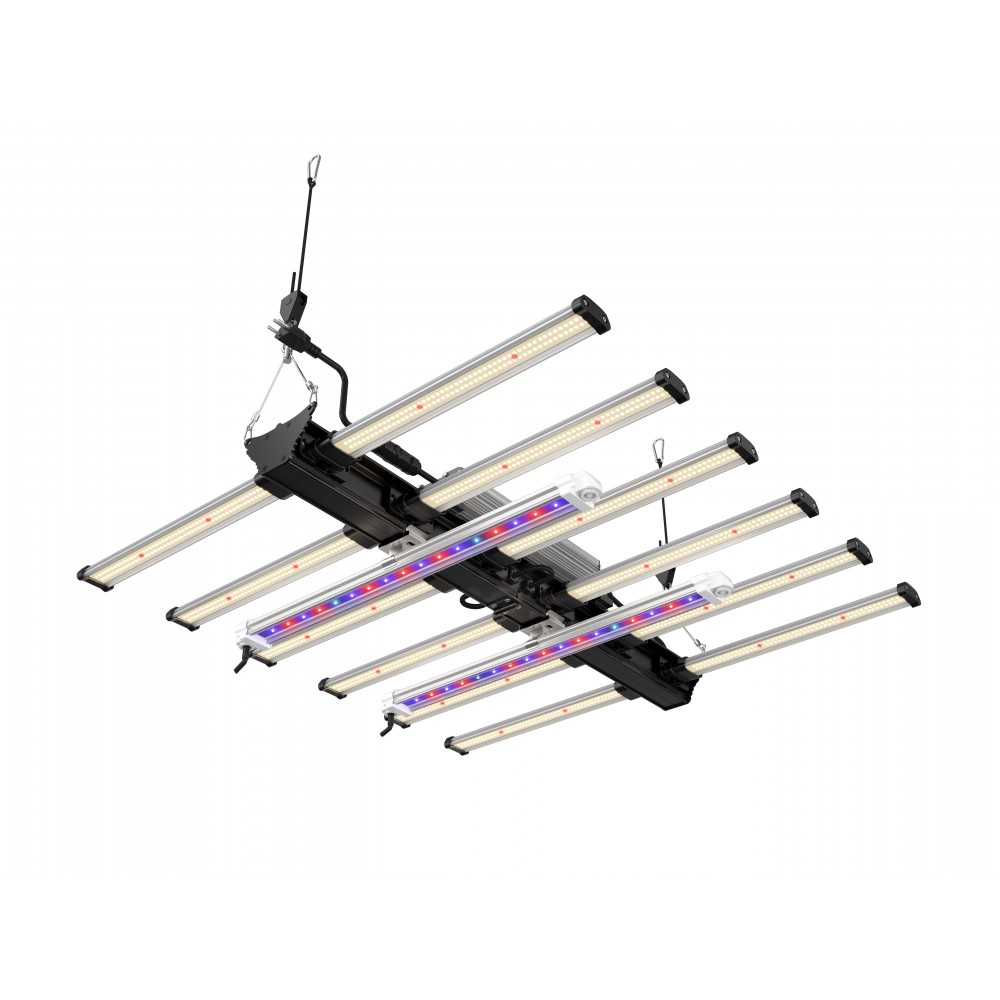

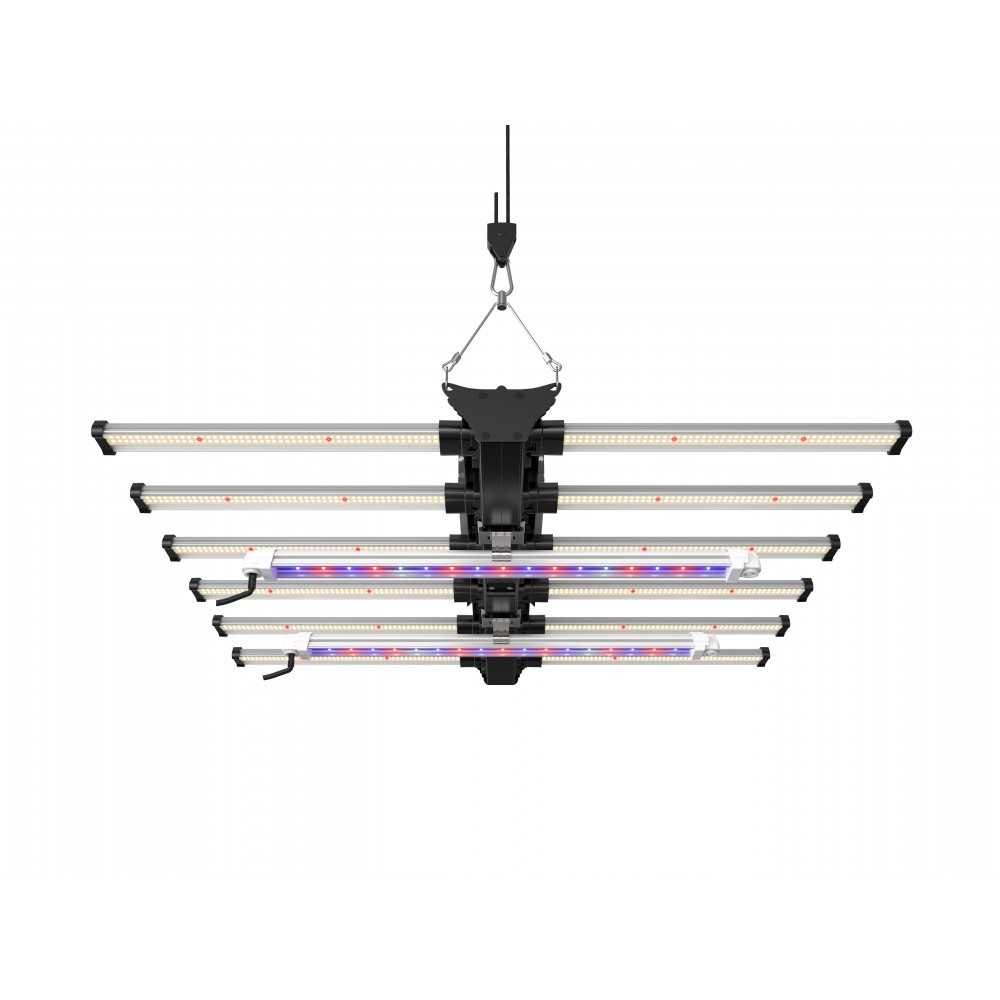

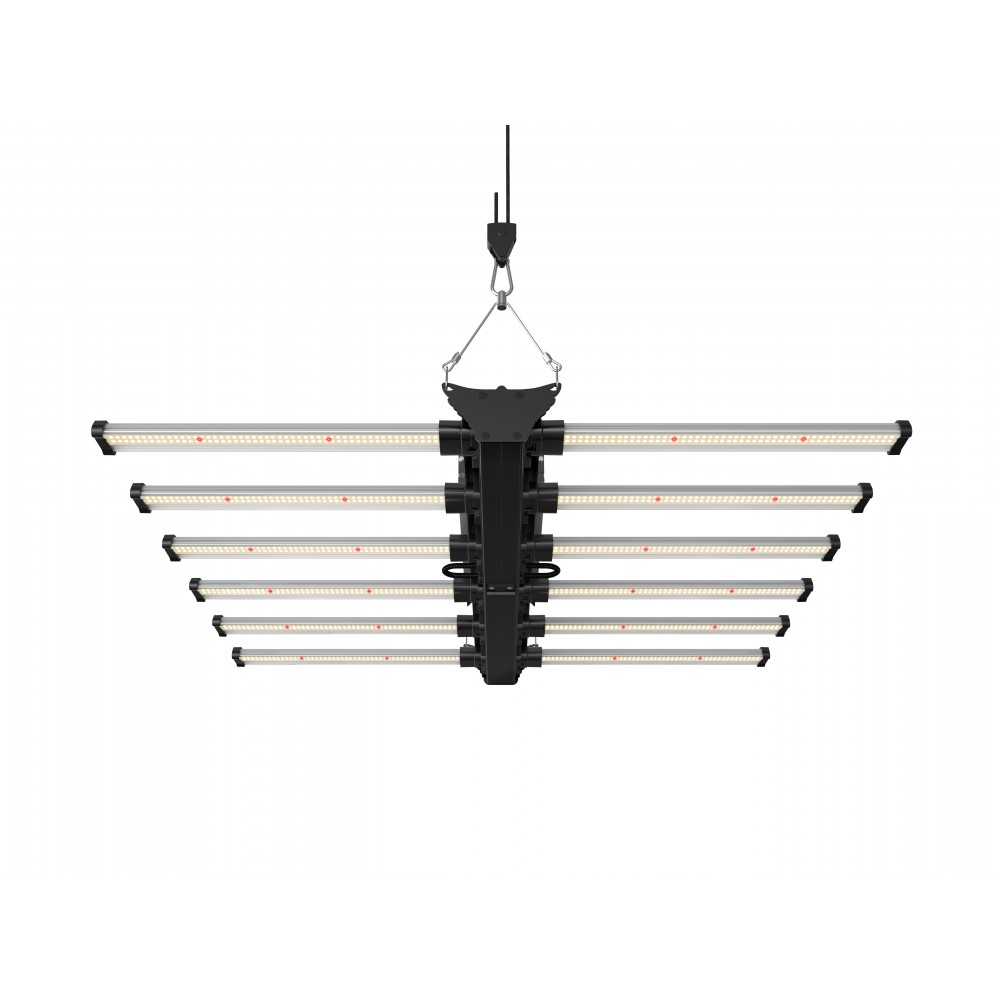

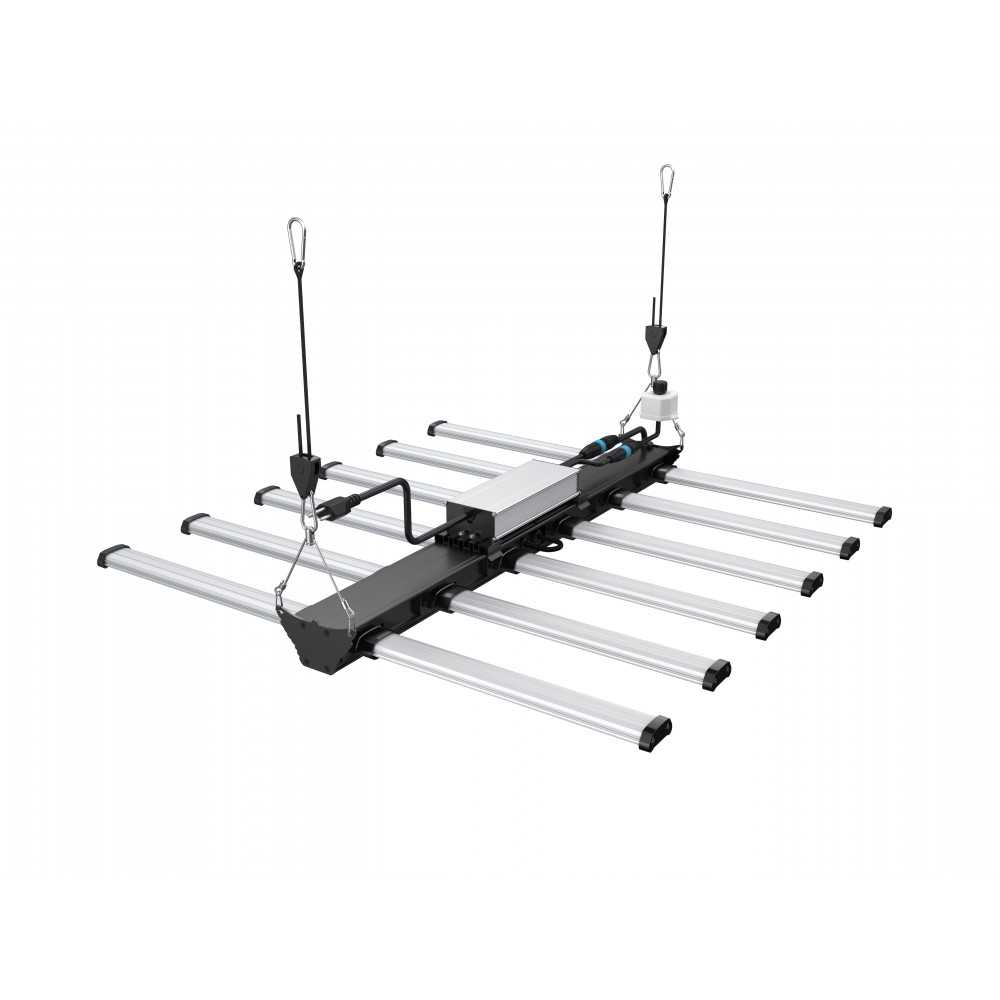

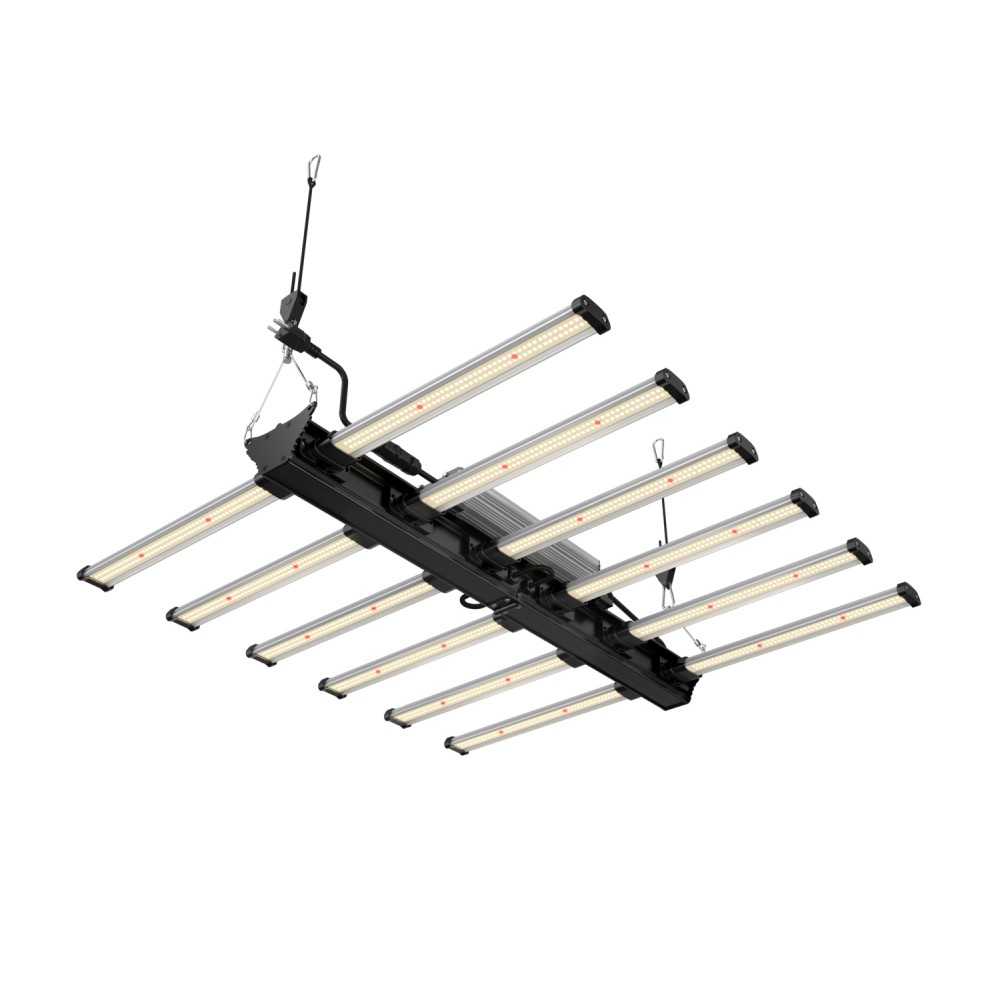

High-tech jewels, the LED horticultural lighting rangeF.O.G BLACK SERIESWas developed by our R&D department in Switzerland, to offer high-performance, modular products with the best value for money.
Designed with reliable, high-performance components, its structure distributes light perfectly around the edges of the crop.
This range of high-tech luminaires is equipped with the latest F.O.G red 660nm 4.5umol/d and Samsung LED chip technology.
To achieve this technological feat, everything has been redesigned.
- New LED chip and transformer technologies.
- Reduced weight and volume for lower shipping costs.
3 SPECTRA IN 1
Its 3-in-1 spectrum means the luminaire can be used in any situation, offering significant advantages.
SPECTRE 1= increase in active ingredients, thc, cbd, terpenes, flavors.
SPECTRE 2= Tight internodes and large leaves for more photosynthesis.
SPECTRE 3= Yield and resin production.
Rooting of cuttings and germination.
Place the luminaire 50cm from the plants and set the light intensity to 25%.
Potting
Light intensity at 25% for 3 days with initial watering at 1.1 - 1.2 EC
Growth
Increase light intensity to 50% with watering at 1.3 - 1.4 EC
Intensive growth
Increase light intensity to 75% with watering at 1.6 - 2.0 EC
Flowering
Position the luminaire 20 - 30cm from the plants and set the light intensity to 100% (EC 2.0 - 2.6).
Yield possible:
+0 to 2Gr/W (0 to 800 gr on 1.2m x1.2m) (0 to 700 gr on 1m x1m)
Can be increased by:
+0 to 79% THC, CBD, CBC, CNG, Delta 8 levels.
Can increase the terpenes of:
+0 à 28.5%
ADVANTAGES
1. More even distribution of light for a more homogeneous crop and higher yields at the edges.
2. No direct heat on the plants = year-round harvest with less risk of disease.
3. 40-50% savings in electricity consumption.
4. Final product can be more compact and produce more weight, resin, terpenes, thc, cbd and flavor.
5. Components replaceable one by one.
6. Transformer that can be moved out of the growing area in summer.
7. 25% - 50% - 75% - 100% dimmer
8. 0-10v dimmable with TROLMASTER controllers
OPTIONS
- 2x 80cm LED bars 30w UVA - UVB - IR
- 4m of cable to move the transformer out of the cultivation area.
Power*: ( 400w +-10% )
PPF* output: 1'160 umol/s
System efficiency: 2.9 umol/d
Input voltage: 100-277 V
Power factor: 0.98
Warranty: 3 years
Dimensions: 65 x 85 x 13.5 cm
Weight: 7 kg
IP: 54
Certifications: CE, ROHS
Variation: 0-10V
BTU: 2500
Tolerance: +-10%
Do not use corrosive or phytosanitary products on silicone or LED chip reflectors. Max. ambient temperature: 35°c
Spécifications
| Max Power |
|---|
