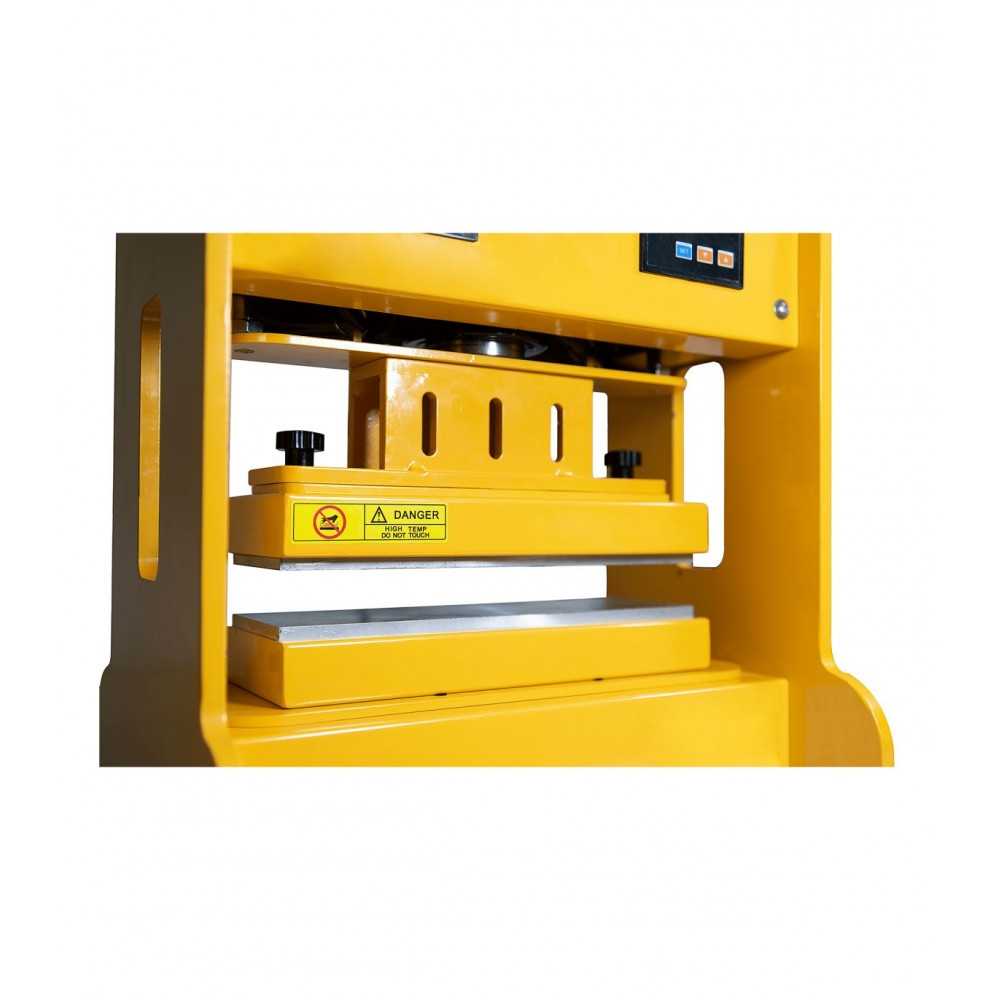

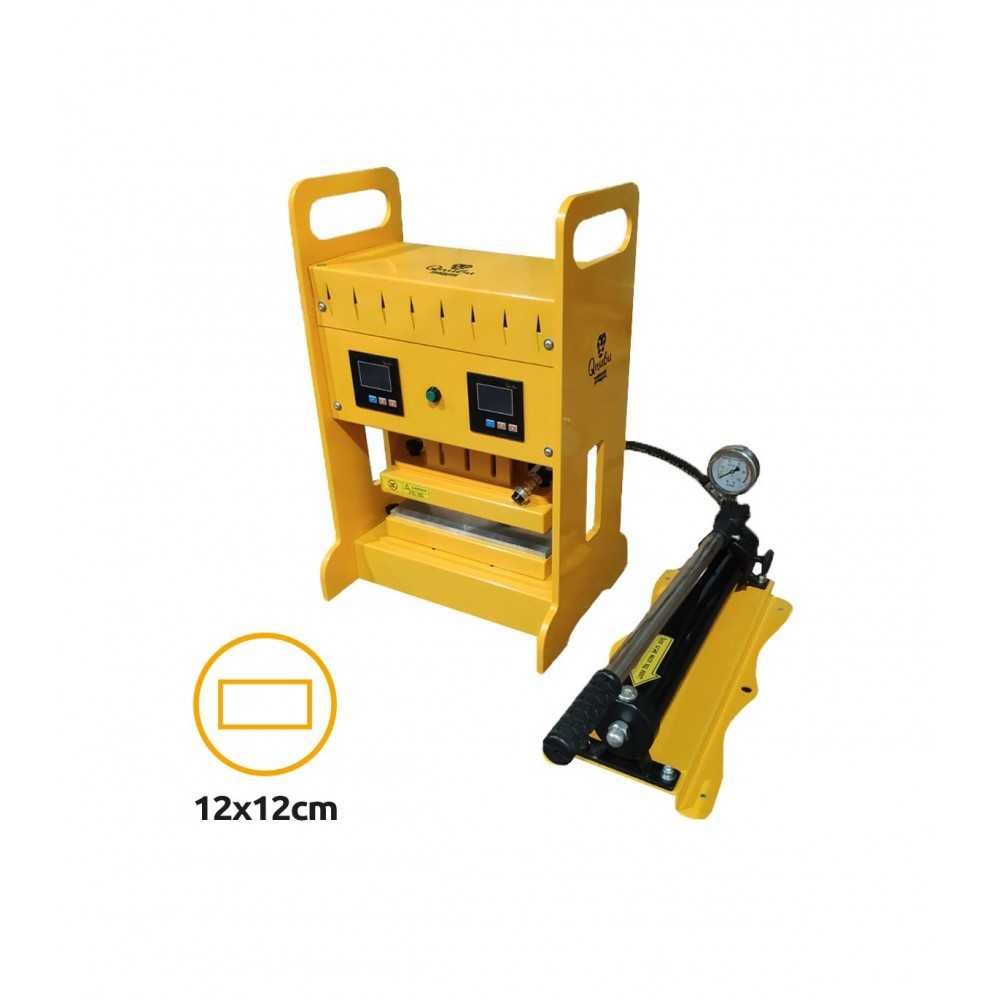

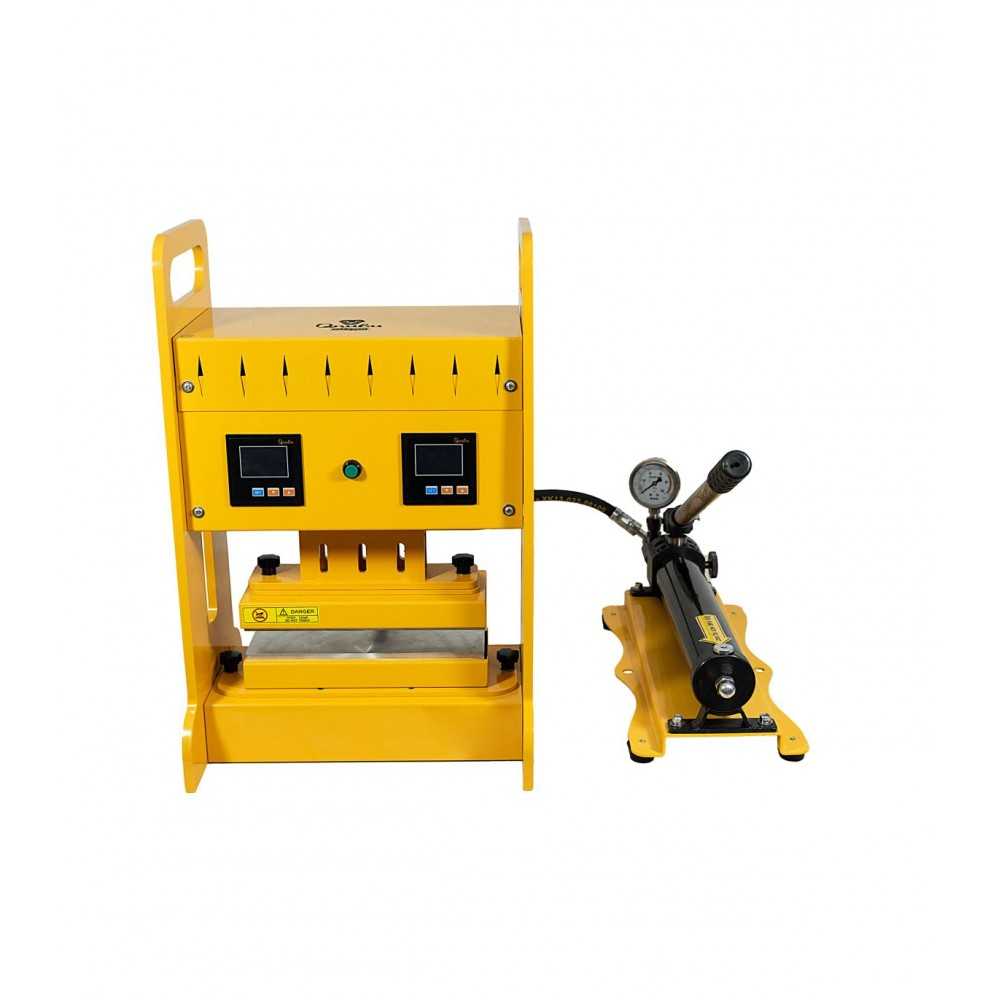

Qnubu Pro Lion Hydraulic 20-ton press (12x12cm platen)
The Qnubu Pro Lion is a press designed for the most demanding extraction professionals, as it has a large capacity and many advantages. Suitable for industrial processes, it allows you to adjust the pressure at any time, up to two tons, thanks to the pressure gauge.
Its new structure makes Qnubu Pro Lion much more stable and resistant.
It features a 12 x 12 cm rectangular plate that can be replaced by a 7.6 x 25 cm plate, and offers a larger pressing surface for processing two or three bags at the same time.
Thanks to a combination of pressure and temperature, the resin and essential oils are pressed and separated from the plant substances, without you having to risk dangerous chemical solvents.
In this quick and simple way, your extraction is complete in a matter of minutes, with no further processes added.
How to use:
Plug the press into the mains and press the press start button.

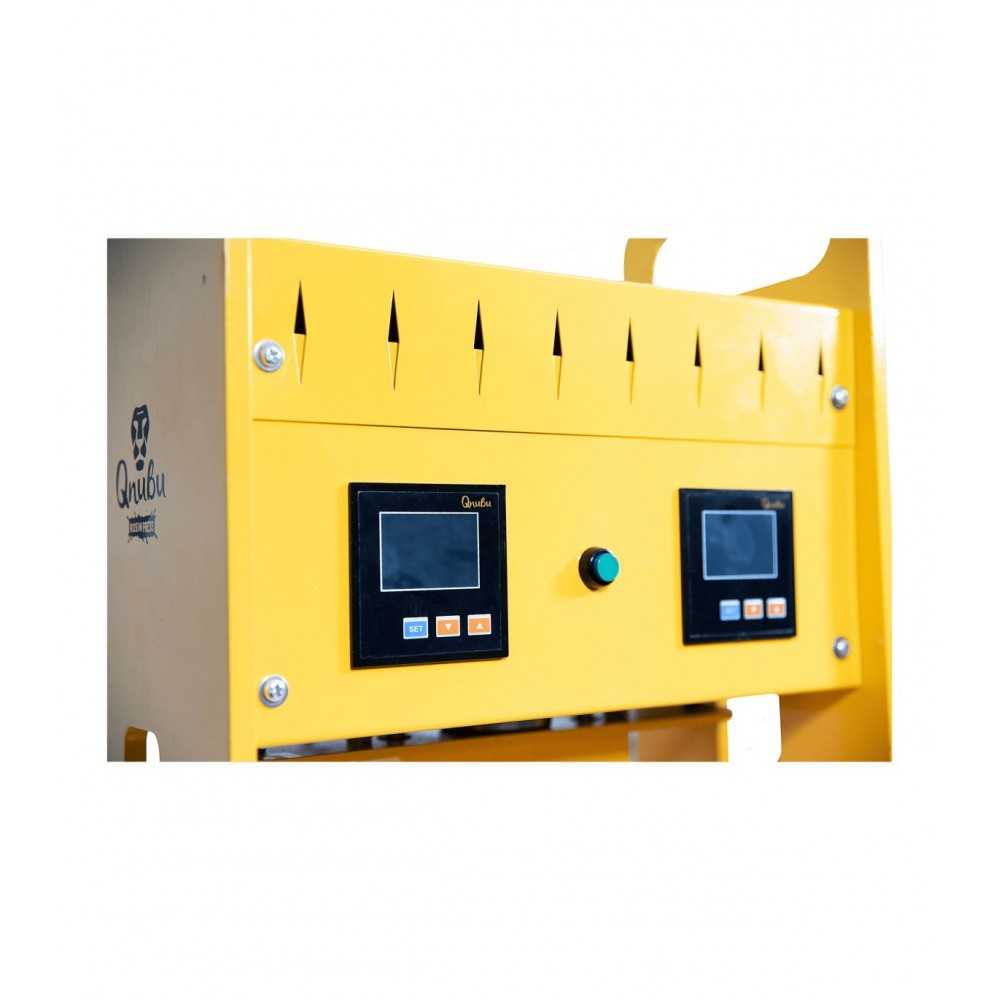

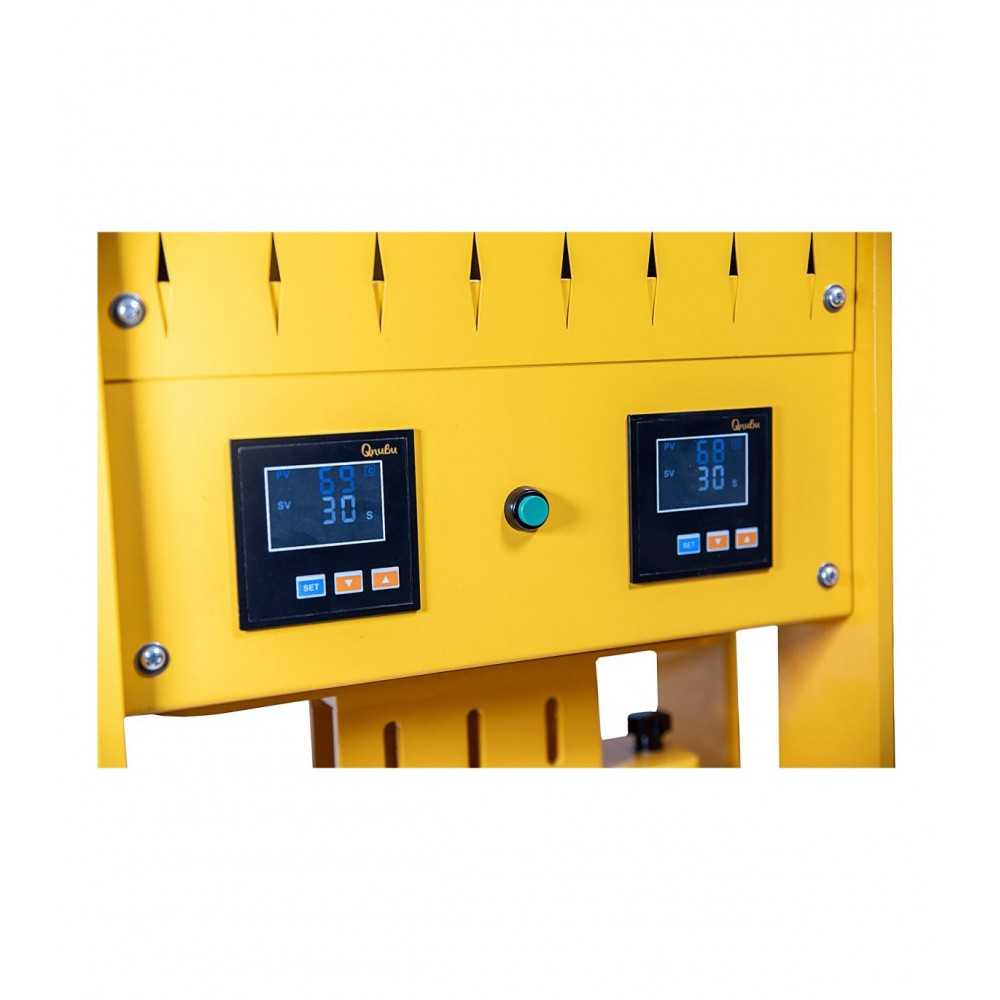

Set the desired pressure, temperature and time parameters.
Wait for the thermostat to reach the set temperature.
Place correctly packed vegetables between the plates.
Operate the pressure crank and activate the countdown button.
The press emits a warning signal at the end of the countdown.
To release pressure on the plates, turn the pressure valve to the left. The hydraulic system releases the pressure and the plates open automatically.
Specification :
Manual operation
Pressure: 20000 Kg - 20 TON.
Size Interchangeable plates: 12 x 12 cm/ 7.6 x 25 cm
Temperature (0-200ºC)
Timer 0-999 sec. Audible warning
European 220 V socket
Power consumption: 1400 W/h
Power consumption: 1400 W
Current: 6.5 A
Frequency: 50Hz
Dimensions: 35.5 x 18 x 49 cm (length x width x height)
Weight: 60 kg
Certification: CE
Spécifications
| duration of the warranty | 2 years |
|---|
